MPPT Charge Regulator Victron SmartSolar 150/85-TR VE.Can

Description

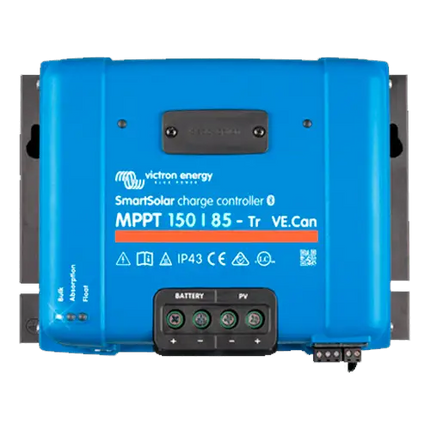

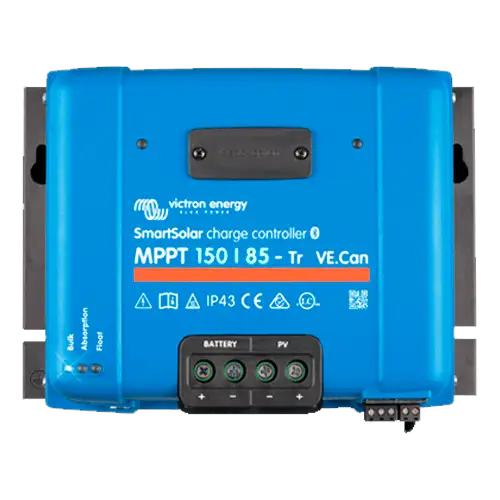

MPPT Charge Regulator Victron SmartSolar 150/85-TR VE.Can

The Victron SmartSolar 150/85-TR VE.Can MPPT Charge Controller is designed to manage large capacity solar PV systems. With a maximum charge current of 85 A and a maximum voltage of 150 V , this controller uses ultra-fast MPPT technology to optimise solar energy harvesting with efficiency of up to 98% . In addition, it features Bluetooth and VE.Can integration for remote control and synchronisation of multiple units.

Main Features

  • MPPT efficiency up to 98%
  • Maximum charging current: 85 A
  • Maximum PV input voltage: 150 V
  • Bluetooth and VE.Can connectivity for remote monitoring and advanced synchronization

Advantages or benefits

  • High efficiency in solar energy conversion
  • Synchronization of up to 25 units with VE.Can and remote monitoring via Bluetooth
  • Advanced protection against over temperature, short circuits and reverse polarity

Purpose or applications

  • Ideal for large commercial solar systems requiring high charging capacity
  • Perfect for solar projects with the need for efficient remote monitoring and power control

Technical specifications

  • Maximum charging current: 85 A
  • Maximum PV input voltage: 150 V
  • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
  • Protection: Output short circuit, over temperature
  • Operating temperature: -30°C to +60°C
  • Weight: 4.5 kg
  • Dimensions: 216 x 295 x 103 mm

In summary, the Victron SmartSolar 150/85-TR VE.Can MPPT Charge Controller is an excellent choice for large PV projects requiring efficient energy management and advanced remote control via Bluetooth and VE.Can.

MPPT Charge Regulator Victron SmartSolar 150/85-TR VE.Can

Product form

HeMPPT Charge Regulator Victron SmartSolar 150/85-TR VE.Canoffers a charging current of85 Aand a voltage of up to150 V, optimizing thesolar energywithBluetoothandVE.Canfor advanced load management.

SKU: REGMPPVIC036

507,32 € 431,22 € Incl. VAT

    Specs

    Description

    MPPT Charge Regulator Victron SmartSolar 150/85-TR VE.Can

    The Victron SmartSolar 150/85-TR VE.Can MPPT Charge Controller is designed to manage large capacity solar PV systems. With a maximum charge current of 85 A and a maximum voltage of 150 V , this controller uses ultra-fast MPPT technology to optimise solar energy harvesting with efficiency of up to 98% . In addition, it features Bluetooth and VE.Can integration for remote control and synchronisation of multiple units.

    Main Features

    • MPPT efficiency up to 98%
    • Maximum charging current: 85 A
    • Maximum PV input voltage: 150 V
    • Bluetooth and VE.Can connectivity for remote monitoring and advanced synchronization

    Advantages or benefits

    • High efficiency in solar energy conversion
    • Synchronization of up to 25 units with VE.Can and remote monitoring via Bluetooth
    • Advanced protection against over temperature, short circuits and reverse polarity

    Purpose or applications

    • Ideal for large commercial solar systems requiring high charging capacity
    • Perfect for solar projects with the need for efficient remote monitoring and power control

    Technical specifications

    • Maximum charging current: 85 A
    • Maximum PV input voltage: 150 V
    • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
    • Protection: Output short circuit, over temperature
    • Operating temperature: -30°C to +60°C
    • Weight: 4.5 kg
    • Dimensions: 216 x 295 x 103 mm

    In summary, the Victron SmartSolar 150/85-TR VE.Can MPPT Charge Controller is an excellent choice for large PV projects requiring efficient energy management and advanced remote control via Bluetooth and VE.Can.
