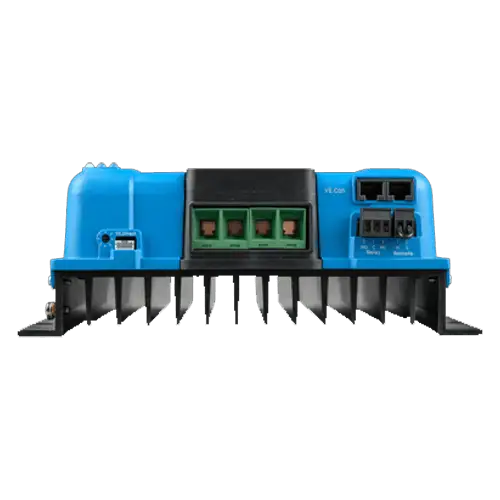

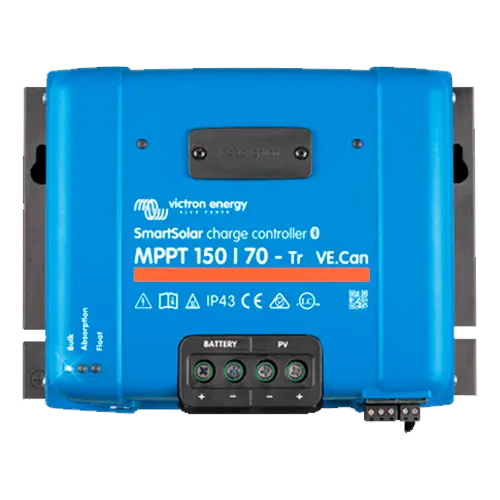

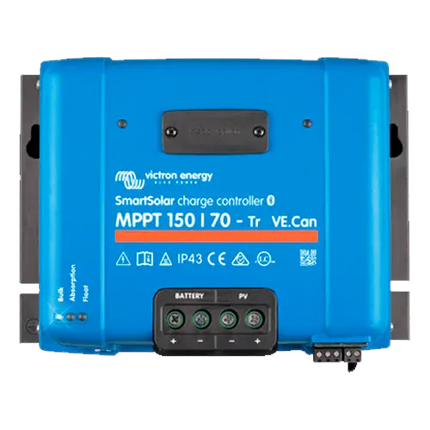

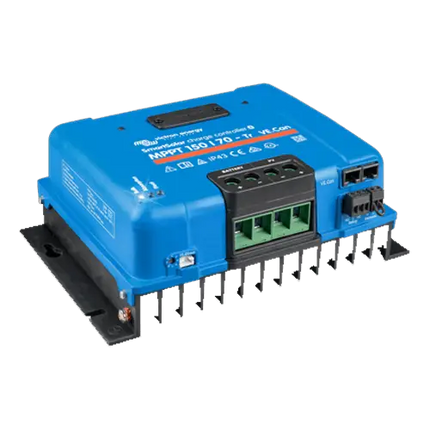

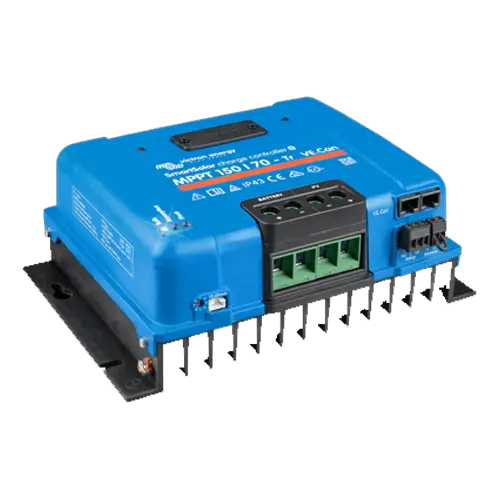

MPPT Charge Regulator Victron SmartSolar 150/70-TR VE.Can

Description

MPPT Charge Regulator Victron SmartSolar 150/70-TR VE.Can

The Victron SmartSolar 150/70-TR VE.Can MPPT Charge Controller is ideal for large-scale solar systems, providing a maximum charging current of 70 A and a maximum voltage of 150 V. With ultra-fast MPPT technology, it achieves superior efficiency 98% energy conversion. Thanks to Bluetooth integration, remote monitoring and control of the load is easy via the VictronConnect app. In addition, the VE.Can interface allows synchronization of up to 25 units, allowing for making it a perfect solution for larger installations.

Main Features

  • MPPT efficiency up to 98%
  • Maximum charging current: 70 A
  • Maximum PV input voltage: 150 V
  • Bluetooth and VE.Can connectivity for remote control and advanced monitoring
  • Compatible with 12V , 24V , 36V , and 48V batteries

Advantages or benefits

  • Optimizes solar energy harvesting in changing light conditions
  • Allows synchronization of up to 25 units with the VE.Can interface
  • Remote monitoring via the VictronConnect app
  • Advanced protection against over temperature, short circuits and reverse polarity

Purpose or applications

  • Ideal for large commercial or industrial solar installations
  • Perfect for projects requiring efficient energy management with advanced remote control

Technical specifications

  • Maximum charging current: 70 A
  • Maximum PV input voltage: 150 V
  • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
  • Protection: Output short circuit, over temperature
  • Operating temperature: -30°C to +60°C
  • Weight: 3 kg
  • Dimensions: 185 x 250 x 95 mm

In short, the Victron SmartSolar 150/70-TR VE.Can MPPT Charge Controller is the ideal choice for large solar installations, with high efficiency and remote control via Bluetooth and VE.Can.

MPPT Charge Regulator Victron SmartSolar 150/70-TR VE.Can

Product form

HeMPPT Charge Regulator Victron SmartSolar 150/70-TR VE.Canmanages thesolar energywith a charging current of70 Aand a voltage of up to150 V, offeringBluetoothfor remote control and load optimization byVE.Can.

SKU: REGMPPVIC033

466,72 € 396,71 € Incl. VAT

    Specs

    Description

    MPPT Charge Regulator Victron SmartSolar 150/70-TR VE.Can

    The Victron SmartSolar 150/70-TR VE.Can MPPT Charge Controller is ideal for large-scale solar systems, providing a maximum charging current of 70 A and a maximum voltage of 150 V. With ultra-fast MPPT technology, it achieves superior efficiency 98% energy conversion. Thanks to Bluetooth integration, remote monitoring and control of the load is easy via the VictronConnect app. In addition, the VE.Can interface allows synchronization of up to 25 units, allowing for making it a perfect solution for larger installations.

    Main Features

    • MPPT efficiency up to 98%
    • Maximum charging current: 70 A
    • Maximum PV input voltage: 150 V
    • Bluetooth and VE.Can connectivity for remote control and advanced monitoring
    • Compatible with 12V , 24V , 36V , and 48V batteries

    Advantages or benefits

    • Optimizes solar energy harvesting in changing light conditions
    • Allows synchronization of up to 25 units with the VE.Can interface
    • Remote monitoring via the VictronConnect app
    • Advanced protection against over temperature, short circuits and reverse polarity

    Purpose or applications

    • Ideal for large commercial or industrial solar installations
    • Perfect for projects requiring efficient energy management with advanced remote control

    Technical specifications

    • Maximum charging current: 70 A
    • Maximum PV input voltage: 150 V
    • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
    • Protection: Output short circuit, over temperature
    • Operating temperature: -30°C to +60°C
    • Weight: 3 kg
    • Dimensions: 185 x 250 x 95 mm

    In short, the Victron SmartSolar 150/70-TR VE.Can MPPT Charge Controller is the ideal choice for large solar installations, with high efficiency and remote control via Bluetooth and VE.Can.
