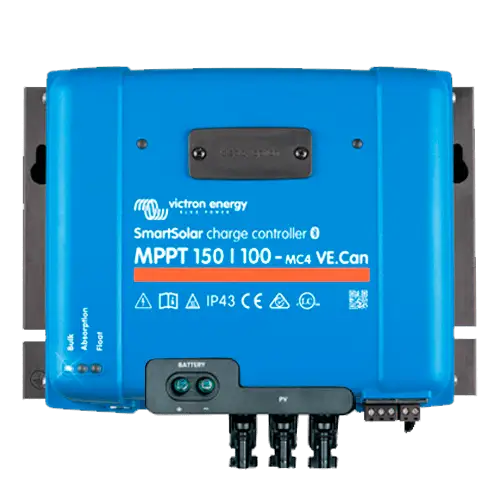

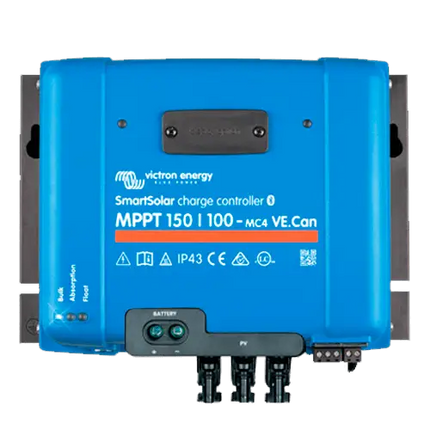

MPPT Charge Regulator Victron SmartSolar 150/100-MC4 VE.Can

Description

MPPT Charge Regulator Victron SmartSolar 150/100-MC4 VE.Can

The Victron SmartSolar 150/100-MC4 VE.Can MPPT Charge Controller is ideal for large solar installations requiring efficient management and advanced charging capability. With a maximum charging current of 100 A and a voltage of up to 150 V , this controller uses MPPT technology to deliver efficiency of up to 99% . In addition, MC4 connectors facilitate quick installation, while Bluetooth and VE.Can integration allows remote monitoring and control of the system.

Main Features

  • MPPT efficiency up to 99%
  • Maximum charging current: 100 A
  • Maximum PV input voltage: 150 V
  • MC4 connectors for easy installation
  • Bluetooth and VE.Can connectivity for remote monitoring and control

Advantages or benefits

  • Easy installation thanks to MC4 connectors
  • Optimizing energy harvesting even in partially cloudy conditions
  • Efficient remote monitoring and control via the VictronConnect app
  • Advanced protection against over temperature, short circuits and reverse polarity

Purpose or applications

  • Ideal for commercial photovoltaic systems and large solar projects
  • Perfect for installations requiring load optimization and remote control

Technical specifications

  • Maximum charging current: 100 A
  • Maximum PV input voltage: 150 V
  • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
  • Protection: Output short circuit, over temperature
  • Operating temperature: -30°C to +60°C
  • Weight: 4.5 kg
  • Dimensions: 246 x 295 x 103 mm

In summary, the Victron SmartSolar 150/100-MC4 VE.Can MPPT Charge Controller is perfect for large solar projects that require easy installation, charge optimization and efficient remote control.

MPPT Charge Regulator Victron SmartSolar 150/100-MC4 VE.Can

Product form

HeMPPT Charge Regulator Victron SmartSolar 150/100-MC4 VE.Canoffers a stream of100 Aand a voltage of up to150 V, with connectorsMC4for easier installation, andBluetoothfor remote control and advanced monitoring of solar charging.

SKU: REGMPPVIC042

587,50 € 499,38 € Incl. VAT

    Specs

    Description

    MPPT Charge Regulator Victron SmartSolar 150/100-MC4 VE.Can

    The Victron SmartSolar 150/100-MC4 VE.Can MPPT Charge Controller is ideal for large solar installations requiring efficient management and advanced charging capability. With a maximum charging current of 100 A and a voltage of up to 150 V , this controller uses MPPT technology to deliver efficiency of up to 99% . In addition, MC4 connectors facilitate quick installation, while Bluetooth and VE.Can integration allows remote monitoring and control of the system.

    Main Features

    • MPPT efficiency up to 99%
    • Maximum charging current: 100 A
    • Maximum PV input voltage: 150 V
    • MC4 connectors for easy installation
    • Bluetooth and VE.Can connectivity for remote monitoring and control

    Advantages or benefits

    • Easy installation thanks to MC4 connectors
    • Optimizing energy harvesting even in partially cloudy conditions
    • Efficient remote monitoring and control via the VictronConnect app
    • Advanced protection against over temperature, short circuits and reverse polarity

    Purpose or applications

    • Ideal for commercial photovoltaic systems and large solar projects
    • Perfect for installations requiring load optimization and remote control

    Technical specifications

    • Maximum charging current: 100 A
    • Maximum PV input voltage: 150 V
    • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
    • Protection: Output short circuit, over temperature
    • Operating temperature: -30°C to +60°C
    • Weight: 4.5 kg
    • Dimensions: 246 x 295 x 103 mm

    In summary, the Victron SmartSolar 150/100-MC4 VE.Can MPPT Charge Controller is perfect for large solar projects that require easy installation, charge optimization and efficient remote control.
