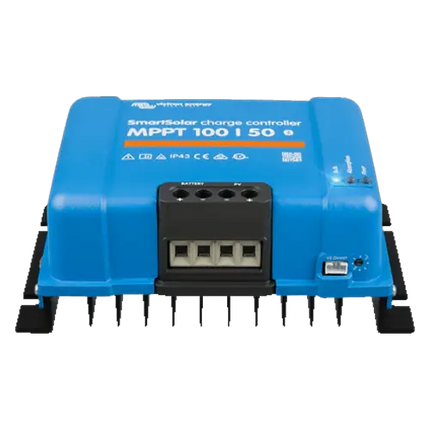

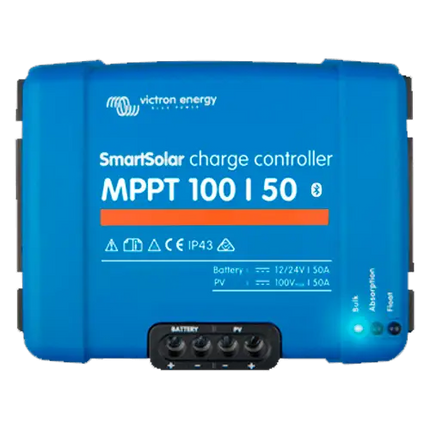

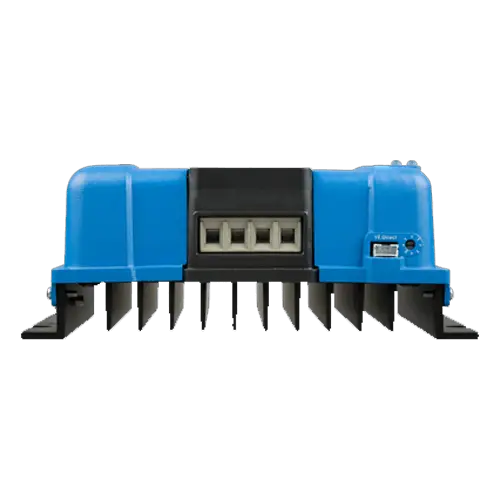

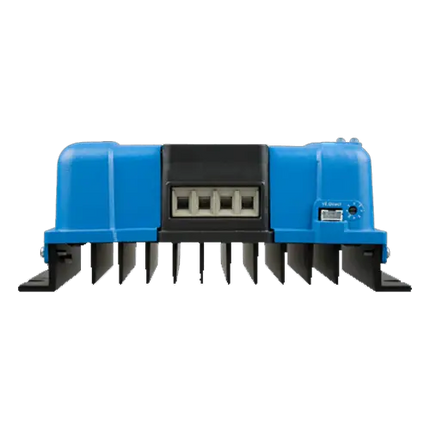

Victron SmartSolar 100/50 MPPT Charge Regulator

Description

Victron SmartSolar 100/50 MPPT Charge Regulator

The Victron SmartSolar 100/50 MPPT Charge Controller is designed to efficiently manage large PV systems. With a maximum charging current of 50 A and a voltage of up to 100 V , this controller uses ultra-fast MPPT technology to maximise energy harvesting. solar with an efficiency of up to 98% . It also has integrated Bluetooth, which facilitates remote monitoring and control using the VictronConnect app.

Main Features

  • MPPT efficiency up to 98%
  • Maximum charging current: 50 A
  • Maximum PV input voltage: 100 V
  • Bluetooth connectivity for remote monitoring and configuration via VictronConnect
  • Compatible with 12V , 24V and 48V batteries

Advantages or benefits

  • Maximizes efficiency in solar energy collection, even in variable light conditions
  • Easy access to data and settings via the VictronConnect app
  • Advanced protection against over temperature, short circuits and reverse polarity

Purpose or applications

  • Ideal for large capacity commercial or industrial solar installations
  • Perfect for users requiring efficient solar energy management and remote monitoring

Technical specifications

  • Maximum charging current: 50 A
  • Maximum PV input voltage: 100 V
  • Absorption charging voltage range: 14.4V/28.8V/57.6V
  • Protection: Output short circuit, over temperature
  • Operating temperature: -30°C to +60°C
  • Weight: 1.3 kg
  • Dimensions: 130 x 186 x 70 mm

In summary, the Victron SmartSolar 100/50 MPPT Charge Controller is ideal for large-scale PV systems, offering efficient remote control via Bluetooth and optimising solar energy performance with advanced MPPT technology.

Victron SmartSolar 100/50 MPPT Charge Regulator

Product form

HeVictron SmartSolar 100/50 MPPT Charge Regulatormanages thesolar energyoflarge photovoltaic systemswith a charging current of50 Aand a voltage of up to100 V, optimizing the load withBluetoothfor efficient monitoring and control.

SKU: REGMPPVIC026

266,00 € 200,00 € Incl. VAT

    Specs
    PDF Icon Descargar ficha técnica

    Description

    Victron SmartSolar 100/50 MPPT Charge Regulator

    The Victron SmartSolar 100/50 MPPT Charge Controller is designed to efficiently manage large PV systems. With a maximum charging current of 50 A and a voltage of up to 100 V , this controller uses ultra-fast MPPT technology to maximise energy harvesting. solar with an efficiency of up to 98% . It also has integrated Bluetooth, which facilitates remote monitoring and control using the VictronConnect app.

    Main Features

    • MPPT efficiency up to 98%
    • Maximum charging current: 50 A
    • Maximum PV input voltage: 100 V
    • Bluetooth connectivity for remote monitoring and configuration via VictronConnect
    • Compatible with 12V , 24V and 48V batteries

    Advantages or benefits

    • Maximizes efficiency in solar energy collection, even in variable light conditions
    • Easy access to data and settings via the VictronConnect app
    • Advanced protection against over temperature, short circuits and reverse polarity

    Purpose or applications

    • Ideal for large capacity commercial or industrial solar installations
    • Perfect for users requiring efficient solar energy management and remote monitoring

    Technical specifications

    • Maximum charging current: 50 A
    • Maximum PV input voltage: 100 V
    • Absorption charging voltage range: 14.4V/28.8V/57.6V
    • Protection: Output short circuit, over temperature
    • Operating temperature: -30°C to +60°C
    • Weight: 1.3 kg
    • Dimensions: 130 x 186 x 70 mm

    In summary, the Victron SmartSolar 100/50 MPPT Charge Controller is ideal for large-scale PV systems, offering efficient remote control via Bluetooth and optimising solar energy performance with advanced MPPT technology.
