Victron BlueSolar PRO 12/24-5 PWM Charge Regulator

Description

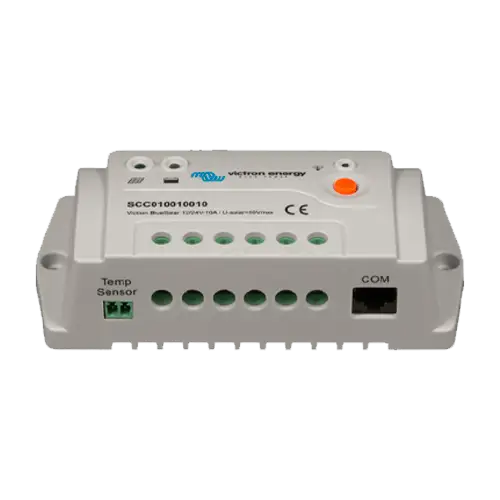

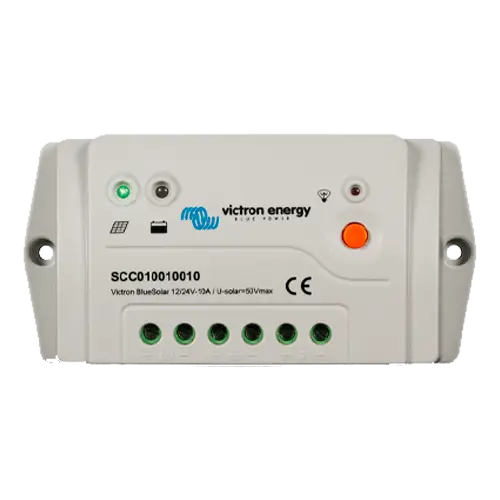

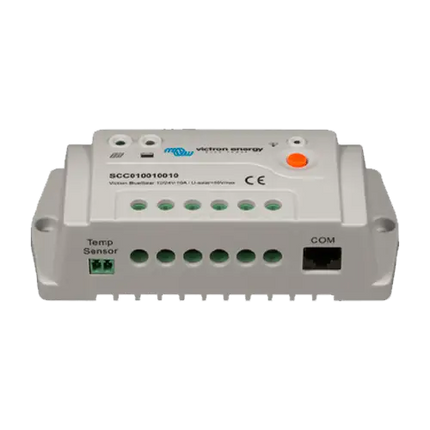

Victron BlueSolar PRO 12/24-5 PWM Charge Regulator

The Victron BlueSolar PRO 12/24-5 PWM Charge Controller is designed for **12V** and **24V** solar systems, providing a nominal charging current of 5A . This model offers efficient control of battery charging with programmable options to adapt the system to your needs. In addition, it includes protections against overload, short circuits and reverse polarity, ensuring the safety of your installation.

Main Features

  • Rated charging current of 5A
  • Maximum solar voltage of 28V/55V
  • Automatic load disconnection due to low voltage
  • LCD display for monitoring charging status (optional remote panel)

Advantages or benefits

  • Programmable for different configurations and optimization of battery charging
  • Advanced protection against overload, short circuits and reverse polarity
  • Manually controlled load outputs or with low voltage disconnection

Purpose or applications

  • Ideal for small residential solar systems, recreational vehicles and low energy demand applications

Technical specifications

  • Battery voltage: 12/24V with auto detection
  • Rated charging current: 5A
  • Own consumption: < 10 mA
  • Protections: Reverse polarity, short circuit, over temperature
  • Operating temperature: -20 to +50°C
  • Optional LCD display (remote panel required)
  • Dimensions: 138 x 70 x 37 mm
  • Weight: 0.13 kg

The Victron BlueSolar PRO 12/24-5 is a perfect choice for those looking for a reliable and efficient regulator for small solar systems, with manual control and advanced protection.

Victron BlueSolar PRO 12/24-5 PWM Charge Regulator

Product form

HeVictron BlueSolar PRO 12/24-5 PWM Charge Regulatorof5AIt is perfect for solar systems of12Veither24V, with efficient control and advanced protection.

SKU: REGPWMVIC015

32,51 € 24,38 € Incl. VAT

    Specs

    Description

    Victron BlueSolar PRO 12/24-5 PWM Charge Regulator

    The Victron BlueSolar PRO 12/24-5 PWM Charge Controller is designed for **12V** and **24V** solar systems, providing a nominal charging current of 5A . This model offers efficient control of battery charging with programmable options to adapt the system to your needs. In addition, it includes protections against overload, short circuits and reverse polarity, ensuring the safety of your installation.

    Main Features

    • Rated charging current of 5A
    • Maximum solar voltage of 28V/55V
    • Automatic load disconnection due to low voltage
    • LCD display for monitoring charging status (optional remote panel)

    Advantages or benefits

    • Programmable for different configurations and optimization of battery charging
    • Advanced protection against overload, short circuits and reverse polarity
    • Manually controlled load outputs or with low voltage disconnection

    Purpose or applications

    • Ideal for small residential solar systems, recreational vehicles and low energy demand applications

    Technical specifications

    • Battery voltage: 12/24V with auto detection
    • Rated charging current: 5A
    • Own consumption: < 10 mA
    • Protections: Reverse polarity, short circuit, over temperature
    • Operating temperature: -20 to +50°C
    • Optional LCD display (remote panel required)
    • Dimensions: 138 x 70 x 37 mm
    • Weight: 0.13 kg

    The Victron BlueSolar PRO 12/24-5 is a perfect choice for those looking for a reliable and efficient regulator for small solar systems, with manual control and advanced protection.
