Victron BlueSolar PRO 12/24-10 PWM Charge Regulator

Description

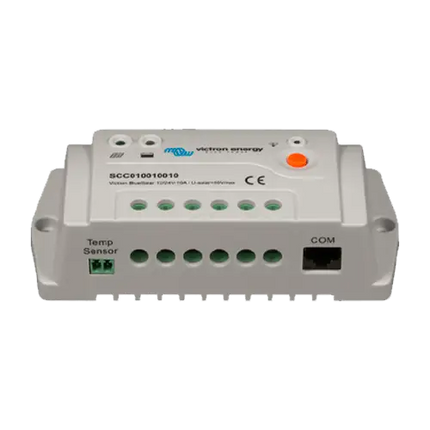

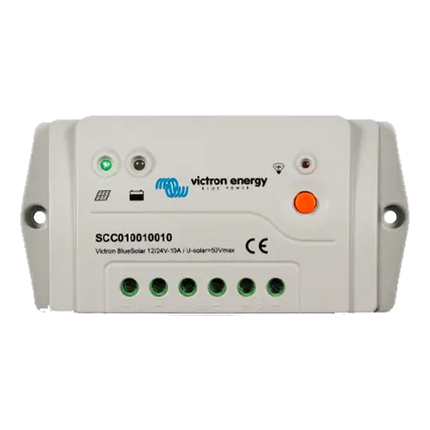

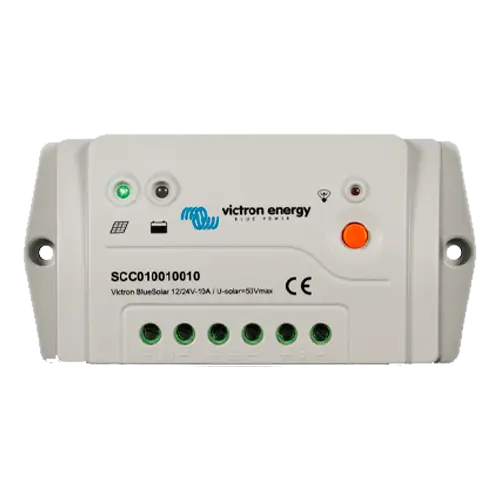

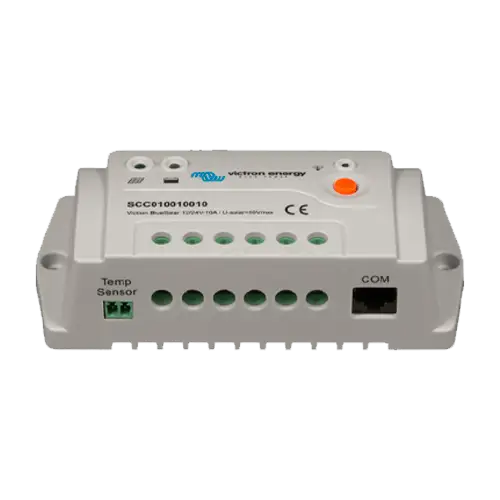

Victron BlueSolar PRO 12/24-10 PWM Charge Regulator

The Victron BlueSolar PRO 12/24-10 10A PWM Charge Controller is designed for **12V** and **24V** solar systems, enabling efficient and safe charging. With programmable features and advanced control, this controller protects your batteries against overcharging, short circuits and reverse polarity, as well as allowing for customised system management.

Main Features

  • Rated charging current of 10A
  • Maximum solar voltage of 28V/55V
  • Automatic load disconnection due to low voltage
  • Programmable options for custom charging configurations

Advantages or benefits

  • Advanced protection for batteries and solar systems
  • Optional remote control for real-time monitoring and configuration
  • Charging outputs protected against overload and short circuits

Purpose or applications

  • Perfect for mid-sized residential solar systems, RV systems, and small commercial solar projects

Technical specifications

  • Battery voltage: 12/24V with auto detection
  • Rated charging current: 10A
  • Own consumption: < 10 mA
  • Protections: Reverse polarity, short circuit, over temperature
  • Operating temperature: -20 to +50°C
  • Optional LCD display (remote panel required)
  • Dimensions: 138 x 70 x 37 mm
  • Weight: 0.13 kg

The Victron BlueSolar PRO 12/24-10 is the ideal choice for those looking for a more powerful regulator for medium-sized solar applications, with advanced configuration and protection options.

Victron BlueSolar PRO 12/24-10 PWM Charge Regulator

Product form

HeVictron BlueSolar PRO 12/24-10 PWM Charge Regulatorof10AIt is ideal for solar systems of12Veither24V, with efficient control and customization options.

SKU: REGPWMVIC016

36,26 € 27,20 € Incl. VAT

    Specs

    Description

    Victron BlueSolar PRO 12/24-10 PWM Charge Regulator

    The Victron BlueSolar PRO 12/24-10 10A PWM Charge Controller is designed for **12V** and **24V** solar systems, enabling efficient and safe charging. With programmable features and advanced control, this controller protects your batteries against overcharging, short circuits and reverse polarity, as well as allowing for customised system management.

    Main Features

    • Rated charging current of 10A
    • Maximum solar voltage of 28V/55V
    • Automatic load disconnection due to low voltage
    • Programmable options for custom charging configurations

    Advantages or benefits

    • Advanced protection for batteries and solar systems
    • Optional remote control for real-time monitoring and configuration
    • Charging outputs protected against overload and short circuits

    Purpose or applications

    • Perfect for mid-sized residential solar systems, RV systems, and small commercial solar projects

    Technical specifications

    • Battery voltage: 12/24V with auto detection
    • Rated charging current: 10A
    • Own consumption: < 10 mA
    • Protections: Reverse polarity, short circuit, over temperature
    • Operating temperature: -20 to +50°C
    • Optional LCD display (remote panel required)
    • Dimensions: 138 x 70 x 37 mm
    • Weight: 0.13 kg

    The Victron BlueSolar PRO 12/24-10 is the ideal choice for those looking for a more powerful regulator for medium-sized solar applications, with advanced configuration and protection options.
