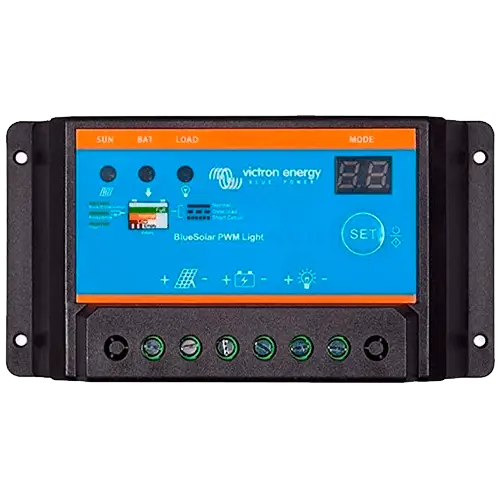

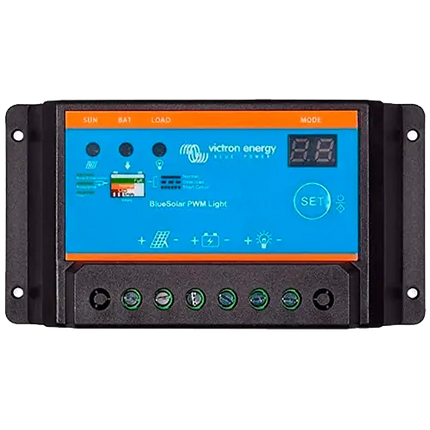

PWM Charge Regulator Victron BlueSolar Light 12/24-30

Description

PWM Charge Regulator Victron BlueSolar Light 12/24-30

The Victron BlueSolar Light 12/24-30 PWM Charge Controller is the perfect choice for high capacity solar systems. With a charging current of up to 30A , this controller ensures efficient battery charge management in 12V and 24V photovoltaic applications, guaranteeing protection against overloads, short circuits and reverse polarity.

Main Features

  • Load up to 30A
  • 12/24V automatic voltage
  • Automatic load disconnection due to low voltage
  • Advanced protection against overload, short circuit and reverse polarity

Advantages or benefits

  • Ideal for large solar systems that require fast and efficient charging
  • Complete protection for safe and optimized operation
  • Low power consumption ( 10 mA ) for greater energy efficiency

Purpose or applications

  • Perfect for large capacity solar installations such as homes or buildings
  • Compatible with solar systems that require a robust and reliable regulator

Technical specifications

  • Battery voltage: 12/24V with auto detection
  • Rated load current: 30A
  • Own consumption: < 10 mA
  • Protections: Reverse polarity, short circuit, over temperature
  • Operating temperature: -20 to +50°C
  • Dimensions: 70 x 133 x 33.5 mm
  • Weight: 0.20 kg

In summary, the Victron BlueSolar Light 12/24-30 PWM Charge Controller is the ideal choice for high capacity solar installations that require efficient and safe charging.

PWM Charge Regulator Victron BlueSolar Light 12/24-30

Product form

HePWM Charge Regulator Victron BlueSolar Light 12/24-30provides30Acharging, ideal for larger solar systems with advanced protection and high efficiency.

SKU: REGPWMVIC004

52,00 € 39,00 € Incl. VAT

    Specs
    PDF Icon Descargar ficha técnica

    Description

    PWM Charge Regulator Victron BlueSolar Light 12/24-30

    The Victron BlueSolar Light 12/24-30 PWM Charge Controller is the perfect choice for high capacity solar systems. With a charging current of up to 30A , this controller ensures efficient battery charge management in 12V and 24V photovoltaic applications, guaranteeing protection against overloads, short circuits and reverse polarity.

    Main Features

    • Load up to 30A
    • 12/24V automatic voltage
    • Automatic load disconnection due to low voltage
    • Advanced protection against overload, short circuit and reverse polarity

    Advantages or benefits

    • Ideal for large solar systems that require fast and efficient charging
    • Complete protection for safe and optimized operation
    • Low power consumption ( 10 mA ) for greater energy efficiency

    Purpose or applications

    • Perfect for large capacity solar installations such as homes or buildings
    • Compatible with solar systems that require a robust and reliable regulator

    Technical specifications

    • Battery voltage: 12/24V with auto detection
    • Rated load current: 30A
    • Own consumption: < 10 mA
    • Protections: Reverse polarity, short circuit, over temperature
    • Operating temperature: -20 to +50°C
    • Dimensions: 70 x 133 x 33.5 mm
    • Weight: 0.20 kg

    In summary, the Victron BlueSolar Light 12/24-30 PWM Charge Controller is the ideal choice for high capacity solar installations that require efficient and safe charging.
