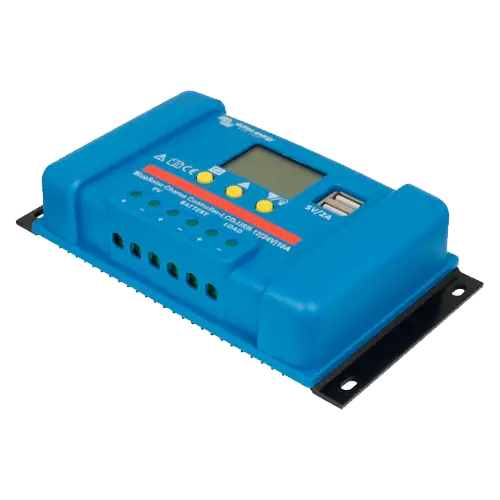

Victron BlueSolar LCD&USB 48-10 PWM Charge Regulator

Description

Victron BlueSolar LCD&USB 48-10 PWM Charge Regulator

The Victron BlueSolar LCD&USB 48-10 PWM Charge Controller is the ideal solution for 48V solar systems with a nominal charge current of 10A . Featuring an LCD display for easy monitoring and configuration, and two USB outputs for charging devices, this controller provides an efficient and cost-effective option for larger solar projects.

Main Features

  • Rated charging current of 10A
  • Maximum solar voltage of 100V
  • Automatic load disconnection due to low voltage
  • LCD display for easy monitoring and adjustment

Advantages or benefits

  • Optimizes the efficiency of 48V solar systems
  • Advanced protection against overload, short circuits and reverse polarity
  • LCD screen for real-time display of charging and system status
  • USB outputs to power additional devices

Purpose or applications

  • Ideal for 48V solar applications such as large homes, commercial installations or small scale industrial PV projects

Technical specifications

  • Battery voltage: 48V
  • Rated charging current: 10A
  • Own consumption: < 10 mA
  • Protections: Reverse polarity, short circuit, over temperature
  • Operating temperature: -35 to +60°C
  • LCD display for monitoring and configuration
  • Dimensions: 101 x 184 x 47 mm
  • Weight: 0.30 kg

The Victron BlueSolar LCD&USB 48-10 PWM Charge Controller is perfect for those requiring a reliable and easy-to-configure controller for 48V solar applications, ensuring high performance and protection for the systems.

Victron BlueSolar LCD&USB 48-10 PWM Charge Regulator

Product form

HeVictron BlueSolar LCD&USB 48-10 PWM Charge Regulatorof10AIt is designed for solar systems of48V, with monitoring via LCD screen and two USB outputs.

SKU: REGPWMVIC012

52,00 € 39,00 € Incl. VAT

    Specs
    PDF Icon Descargar ficha técnica

    Description

    Victron BlueSolar LCD&USB 48-10 PWM Charge Regulator

    The Victron BlueSolar LCD&USB 48-10 PWM Charge Controller is the ideal solution for 48V solar systems with a nominal charge current of 10A . Featuring an LCD display for easy monitoring and configuration, and two USB outputs for charging devices, this controller provides an efficient and cost-effective option for larger solar projects.

    Main Features

    • Rated charging current of 10A
    • Maximum solar voltage of 100V
    • Automatic load disconnection due to low voltage
    • LCD display for easy monitoring and adjustment

    Advantages or benefits

    • Optimizes the efficiency of 48V solar systems
    • Advanced protection against overload, short circuits and reverse polarity
    • LCD screen for real-time display of charging and system status
    • USB outputs to power additional devices

    Purpose or applications

    • Ideal for 48V solar applications such as large homes, commercial installations or small scale industrial PV projects

    Technical specifications

    • Battery voltage: 48V
    • Rated charging current: 10A
    • Own consumption: < 10 mA
    • Protections: Reverse polarity, short circuit, over temperature
    • Operating temperature: -35 to +60°C
    • LCD display for monitoring and configuration
    • Dimensions: 101 x 184 x 47 mm
    • Weight: 0.30 kg

    The Victron BlueSolar LCD&USB 48-10 PWM Charge Controller is perfect for those requiring a reliable and easy-to-configure controller for 48V solar applications, ensuring high performance and protection for the systems.
