Victron BlueSolar DUO 12/24-20 PWM Charge Regulator

Description

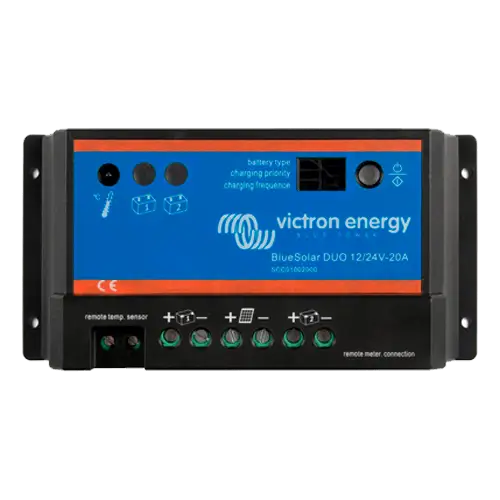

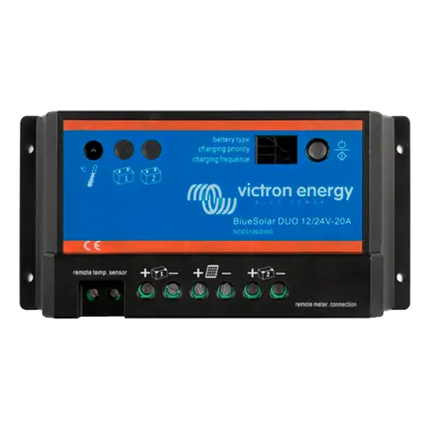

Victron BlueSolar DUO 12/24-20 PWM Charge Regulator

The Victron BlueSolar DUO 12/24-20 PWM Charge Controller is an ideal solution for solar systems requiring two batteries to be charged simultaneously. With a charging current of 20A , it is perfect for applications such as boats or motorhomes using a starter battery and a service battery. This controller enables efficient management of solar energy, providing settings for three types of batteries: Gel , AGM and Flooded .

Main Features

  • Charges up to two batteries simultaneously (e.g. starter and service battery)
  • Rated charging current of 20A
  • Charging voltage settings for three types of batteries: Gel, AGM and Flooded
  • Internal temperature sensor and optional remote sensor
  • Overcurrent, short circuit and reverse polarity protection

Advantages or benefits

  • Facilitates the charging of two different batteries, optimizing energy for photovoltaic systems
  • High efficiency in solar energy management
  • Advanced protection against system failures such as short circuits or incorrect connection
  • Temperature compensated for optimized performance

Purpose or applications

  • Ideal for solar systems on boats, mobile homes or applications with multiple batteries
  • Compatible with renewable energy systems that require efficient charging for two different batteries

Technical specifications

  • Battery voltage: 12/24V with automatic system voltage detection
  • Rated charging current: 20 A
  • Maximum solar panel voltage: 28V/55V
  • Own consumption: 4 mA
  • Protections: Reverse battery polarity (fuse), output short circuit, over temperature
  • Operating temperature: -35°C to +55°C
  • Weight: 0.18 kg
  • Dimensions: 76 x 153 x 37 mm

In summary, the Victron BlueSolar DUO 12/24-20 PWM Charge Controller is an efficient and safe option for managing two batteries in solar systems, ensuring proper charging and advanced protection for your photovoltaic system.

Victron BlueSolar DUO 12/24-20 PWM Charge Regulator

Product form

HeVictron BlueSolar DUO 12/24-20 PWM Charge Regulatoroffers efficient charging of up to20Afortwo batteriesin solar systems, with charging configurations forGel, AGMandFlooded.

Modelo: PWM BlueSolar DUO 12/24-20

SKU: REGPWMVIC019

69,44 € 59,02 € Incl. VAT

    Specs

    Description

    Victron BlueSolar DUO 12/24-20 PWM Charge Regulator

    The Victron BlueSolar DUO 12/24-20 PWM Charge Controller is an ideal solution for solar systems requiring two batteries to be charged simultaneously. With a charging current of 20A , it is perfect for applications such as boats or motorhomes using a starter battery and a service battery. This controller enables efficient management of solar energy, providing settings for three types of batteries: Gel , AGM and Flooded .

    Main Features

    • Charges up to two batteries simultaneously (e.g. starter and service battery)
    • Rated charging current of 20A
    • Charging voltage settings for three types of batteries: Gel, AGM and Flooded
    • Internal temperature sensor and optional remote sensor
    • Overcurrent, short circuit and reverse polarity protection

    Advantages or benefits

    • Facilitates the charging of two different batteries, optimizing energy for photovoltaic systems
    • High efficiency in solar energy management
    • Advanced protection against system failures such as short circuits or incorrect connection
    • Temperature compensated for optimized performance

    Purpose or applications

    • Ideal for solar systems on boats, mobile homes or applications with multiple batteries
    • Compatible with renewable energy systems that require efficient charging for two different batteries

    Technical specifications

    • Battery voltage: 12/24V with automatic system voltage detection
    • Rated charging current: 20 A
    • Maximum solar panel voltage: 28V/55V
    • Own consumption: 4 mA
    • Protections: Reverse battery polarity (fuse), output short circuit, over temperature
    • Operating temperature: -35°C to +55°C
    • Weight: 0.18 kg
    • Dimensions: 76 x 153 x 37 mm

    In summary, the Victron BlueSolar DUO 12/24-20 PWM Charge Controller is an efficient and safe option for managing two batteries in solar systems, ensuring proper charging and advanced protection for your photovoltaic system.
