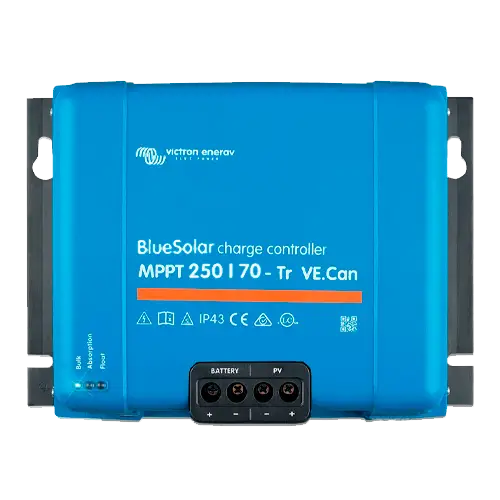

MPPT Charge Regulator Victron BlueSolar 250/70-TR VE.Can

Description

MPPT Charge Regulator Victron BlueSolar 250/70-TR VE.Can

The Victron BlueSolar 250/70-TR VE.Can MPPT Charge Controller is designed to maximise the performance of large solar PV installations. With a charging current of up to 70 A and a maximum input voltage of 250 V , this controller provides up to 99% efficiency in solar energy conversion. In addition, thanks to VE.Can connectivity, it is possible to monitor and manage multiple units in a synchronised manner.

Main Features

  • Conversion efficiency up to 99%
  • Maximum PV input voltage: 250 V
  • Maximum charging current: 70 A
  • Rated power up to 4000W at 48V
  • VE.Can connection for remote monitoring and management of multiple units

Advantages or benefits

  • Ultra-fast maximum power point tracking, improving energy harvesting in changing light conditions
  • Ability to connect up to 25 units in parallel, ideal for large-scale installations
  • Advanced protection against over temperature, short circuits and reverse polarity

Purpose or applications

  • Ideal for large commercial and industrial solar projects
  • Perfect for optimizing the performance of high-capacity photovoltaic solar systems

Technical specifications

  • Maximum charging current: 70 A
  • Maximum PV input voltage: 250 V
  • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
  • Protection: Short circuit, over temperature and reverse polarity
  • Operating temperature: -30°C to +60°C
  • Weight: 3 kg
  • Dimensions: 185 x 250 x 95 mm

In summary, the Victron BlueSolar 250/70-TR VE.Can MPPT Charge Controller is ideal for large-scale solar PV projects, offering a maximum charging current of 70 A and VE.Can monitoring technology to facilitate the management of complex renewable energy systems.

MPPT Charge Regulator Victron BlueSolar 250/70-TR VE.Can

Product form

HeMPPT Charge Regulator Victron BlueSolar 250/70-TR VE.CanIt is ideal forlarge photovoltaic installations, with a maximum current of70 Aand a voltage of up to250 V, providing efficiency of up to99%.

SKU: REGMPPVIC019

556,03 € 472,63 € Incl. VAT

    Specs

    Description

    MPPT Charge Regulator Victron BlueSolar 250/70-TR VE.Can

    The Victron BlueSolar 250/70-TR VE.Can MPPT Charge Controller is designed to maximise the performance of large solar PV installations. With a charging current of up to 70 A and a maximum input voltage of 250 V , this controller provides up to 99% efficiency in solar energy conversion. In addition, thanks to VE.Can connectivity, it is possible to monitor and manage multiple units in a synchronised manner.

    Main Features

    • Conversion efficiency up to 99%
    • Maximum PV input voltage: 250 V
    • Maximum charging current: 70 A
    • Rated power up to 4000W at 48V
    • VE.Can connection for remote monitoring and management of multiple units

    Advantages or benefits

    • Ultra-fast maximum power point tracking, improving energy harvesting in changing light conditions
    • Ability to connect up to 25 units in parallel, ideal for large-scale installations
    • Advanced protection against over temperature, short circuits and reverse polarity

    Purpose or applications

    • Ideal for large commercial and industrial solar projects
    • Perfect for optimizing the performance of high-capacity photovoltaic solar systems

    Technical specifications

    • Maximum charging current: 70 A
    • Maximum PV input voltage: 250 V
    • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
    • Protection: Short circuit, over temperature and reverse polarity
    • Operating temperature: -30°C to +60°C
    • Weight: 3 kg
    • Dimensions: 185 x 250 x 95 mm

    In summary, the Victron BlueSolar 250/70-TR VE.Can MPPT Charge Controller is ideal for large-scale solar PV projects, offering a maximum charging current of 70 A and VE.Can monitoring technology to facilitate the management of complex renewable energy systems.
