Victron BlueSolar 150/70-MC4 MPPT Charge Regulator

Description

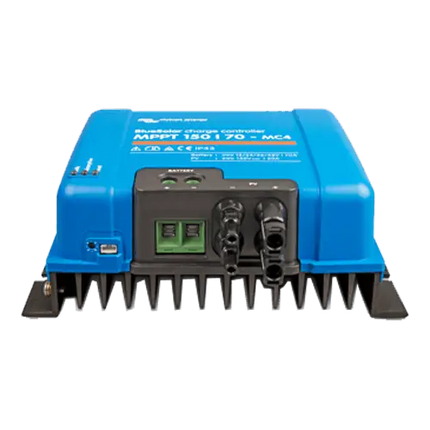

Victron BlueSolar 150/70-MC4 MPPT Charge Regulator

The Victron BlueSolar 150/70-MC4 MPPT Charge Controller is an excellent choice for high capacity solar PV systems requiring MC4 connectors. With a charging current of up to 70 A and a voltage of up to 150 V , this controller optimises solar energy harvesting using its ultra-fast MPPT technology, achieving an efficiency of up to 98% . It is ideal for commercial or industrial applications with high renewable energy needs.

Main Features

  • MPPT efficiency up to 98%
  • Maximum PV input voltage: 150 V
  • Maximum charging current: 70 A
  • Rated power up to 4000W at 48V
  • MC4 connectors for quick and easy integration

Advantages or benefits

  • Optimizes solar charging even in partially cloudy conditions or variable sunlight
  • Advanced protection against over temperature, short circuits and reverse polarity
  • Real-time data monitoring using VE.Direct for detailed performance analysis

Purpose or applications

  • Ideal for large scale commercial or industrial solar installations
  • Optimize battery charging and maximize the efficiency of large photovoltaic systems

Technical specifications

  • Maximum charging current: 70 A
  • Maximum PV input voltage: 150 V
  • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
  • Protection: Short circuit, over temperature and reverse polarity
  • Operating temperature: -30°C to +60°C
  • Weight: 3 kg
  • Dimensions: 215 x 250 x 95 mm

In summary, the Victron BlueSolar 150/70-MC4 MPPT Charge Controller is perfect for large solar applications requiring MC4 connectors. With its MPPT efficiency and charging capacity of up to 70 A , it is ideal for optimising the performance of commercial or industrial PV systems.

Victron BlueSolar 150/70-MC4 MPPT Charge Regulator

Product form

HeVictron BlueSolar 150/70-MC4 MPPT Charge Regulatoroffers exceptional efficiency of up to98%, with a maximum charging current of70 Aand voltage up to150 V, ideal forlarge photovoltaic systemsrequiring connectorsMC4.

SKU: REGMPPVIC017

397,70 € 338,05 € Incl. VAT

    Specs

    Description

    Victron BlueSolar 150/70-MC4 MPPT Charge Regulator

    The Victron BlueSolar 150/70-MC4 MPPT Charge Controller is an excellent choice for high capacity solar PV systems requiring MC4 connectors. With a charging current of up to 70 A and a voltage of up to 150 V , this controller optimises solar energy harvesting using its ultra-fast MPPT technology, achieving an efficiency of up to 98% . It is ideal for commercial or industrial applications with high renewable energy needs.

    Main Features

    • MPPT efficiency up to 98%
    • Maximum PV input voltage: 150 V
    • Maximum charging current: 70 A
    • Rated power up to 4000W at 48V
    • MC4 connectors for quick and easy integration

    Advantages or benefits

    • Optimizes solar charging even in partially cloudy conditions or variable sunlight
    • Advanced protection against over temperature, short circuits and reverse polarity
    • Real-time data monitoring using VE.Direct for detailed performance analysis

    Purpose or applications

    • Ideal for large scale commercial or industrial solar installations
    • Optimize battery charging and maximize the efficiency of large photovoltaic systems

    Technical specifications

    • Maximum charging current: 70 A
    • Maximum PV input voltage: 150 V
    • Absorption charging voltage range: 14.4V/28.8V/43.2V/57.6V
    • Protection: Short circuit, over temperature and reverse polarity
    • Operating temperature: -30°C to +60°C
    • Weight: 3 kg
    • Dimensions: 215 x 250 x 95 mm

    In summary, the Victron BlueSolar 150/70-MC4 MPPT Charge Controller is perfect for large solar applications requiring MC4 connectors. With its MPPT efficiency and charging capacity of up to 70 A , it is ideal for optimising the performance of commercial or industrial PV systems.
