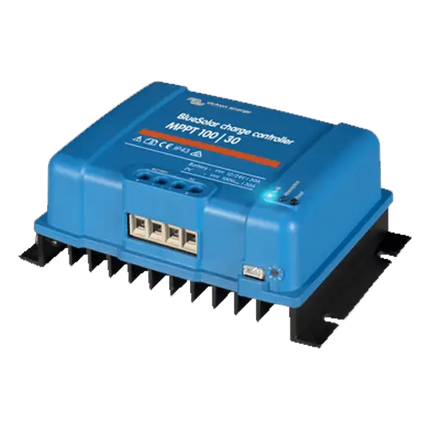

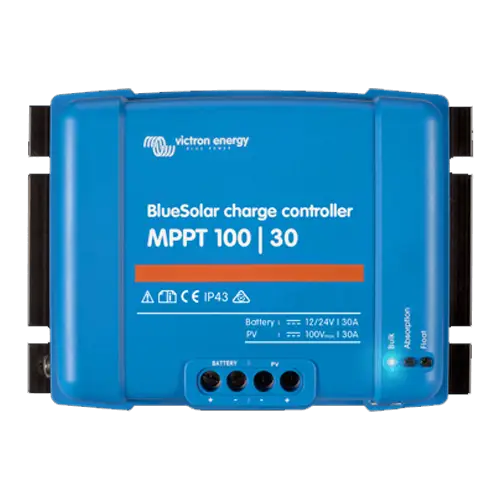

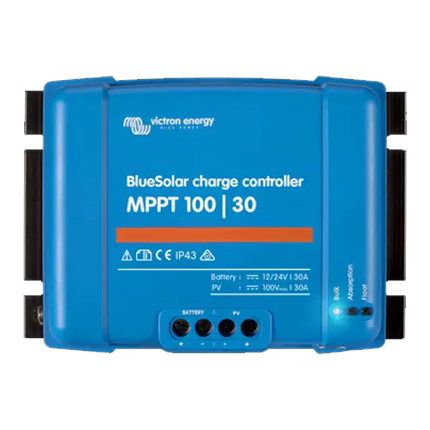

Victron BlueSolar 100/30 MPPT Charge Regulator

Description

Victron BlueSolar 100/30 MPPT Charge Regulator

The Victron BlueSolar 100/30 MPPT Charge Controller is ideal for higher capacity PV systems. With a maximum charging current of 30 A and a voltage of up to 100 V , this controller optimises charging efficiency and maximises solar energy harvesting, reaching up to 98% efficiency. Its ability to handle higher loads makes it perfect for commercial or industrial renewable energy applications.

Main Features

  • MPPT efficiency up to 98%
  • Maximum PV input voltage: 100 V
  • Maximum charging current: 30 A
  • Nominal power up to 880W at 24V
  • VE.Direct port for real-time system monitoring

Advantages or benefits

  • Optimizes solar charging efficiency, even in low irradiation conditions
  • Advanced protection against over temperature, short circuits and reverse polarity
  • Ultra-fast maximum power point tracking, improving energy harvesting by up to 30% compared to PWM regulators

Purpose or applications

  • Ideal for commercial or industrial photovoltaic installations
  • Optimizes the performance of solar systems in low irradiation or partial cloud conditions

Technical specifications

  • Maximum charging current: 30 A
  • Maximum PV input voltage: 100 V
  • Absorption charging voltage range: 14.4V/28.8V
  • Protection: Short circuit, over temperature and reverse polarity
  • Operating temperature: -30°C to +60°C
  • Weight: 1.3 kg
  • Dimensions: 130 x 186 x 70 mm

In summary, the Victron BlueSolar 100/30 MPPT Charge Controller is the ideal solution for maximising the efficiency of large solar PV systems. Its charging capacity of up to 30 A and its advanced MPPT technology make it an essential component for commercial or residential installations. industrial.

Victron BlueSolar 100/30 MPPT Charge Regulator

Product form

HeVictron BlueSolar 100/30 MPPT Charge Regulatormaximizes the efficiency ofsolar systemslarge with a charging current of30 Aand a voltage of up to100 V, ideal for commercial or industrial photovoltaic installations.

SKU: REGMPPVIC009

169,00 € 127,00 € Incl. VAT

    Specs
    PDF Icon Descargar ficha técnica

    Description

    Victron BlueSolar 100/30 MPPT Charge Regulator

    The Victron BlueSolar 100/30 MPPT Charge Controller is ideal for higher capacity PV systems. With a maximum charging current of 30 A and a voltage of up to 100 V , this controller optimises charging efficiency and maximises solar energy harvesting, reaching up to 98% efficiency. Its ability to handle higher loads makes it perfect for commercial or industrial renewable energy applications.

    Main Features

    • MPPT efficiency up to 98%
    • Maximum PV input voltage: 100 V
    • Maximum charging current: 30 A
    • Nominal power up to 880W at 24V
    • VE.Direct port for real-time system monitoring

    Advantages or benefits

    • Optimizes solar charging efficiency, even in low irradiation conditions
    • Advanced protection against over temperature, short circuits and reverse polarity
    • Ultra-fast maximum power point tracking, improving energy harvesting by up to 30% compared to PWM regulators

    Purpose or applications

    • Ideal for commercial or industrial photovoltaic installations
    • Optimizes the performance of solar systems in low irradiation or partial cloud conditions

    Technical specifications

    • Maximum charging current: 30 A
    • Maximum PV input voltage: 100 V
    • Absorption charging voltage range: 14.4V/28.8V
    • Protection: Short circuit, over temperature and reverse polarity
    • Operating temperature: -30°C to +60°C
    • Weight: 1.3 kg
    • Dimensions: 130 x 186 x 70 mm

    In summary, the Victron BlueSolar 100/30 MPPT Charge Controller is the ideal solution for maximising the efficiency of large solar PV systems. Its charging capacity of up to 30 A and its advanced MPPT technology make it an essential component for commercial or residential installations. industrial.
