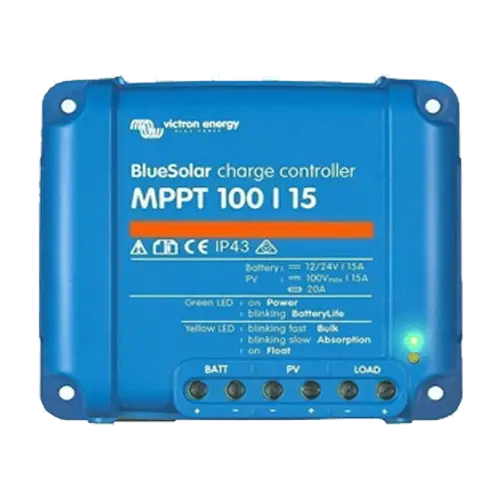

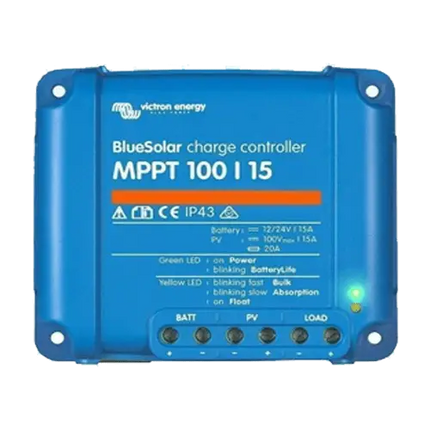

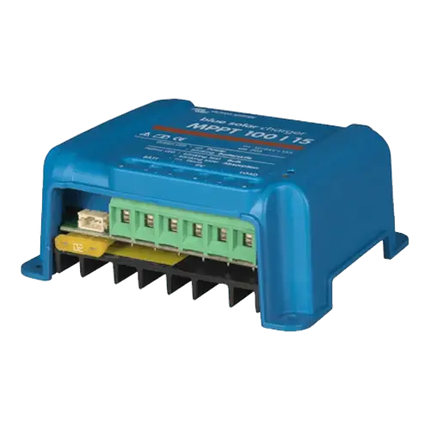

Victron BlueSolar 100/15 MPPT Charge Regulator

Description

Victron BlueSolar 100/15 MPPT Charge Regulator

The Victron BlueSolar 100/15 MPPT Charge Controller is an excellent choice for those looking to improve the performance of their medium to large solar PV systems. With a maximum charging current of 15 A and an input voltage of up to 100 V , this controller optimizes solar energy harvesting using advanced MPPT technology. Its charging efficiency of up to 98% ensures excellent performance, even in low irradiance conditions.

Main Features

  • Maximum MPPT efficiency up to 98%
  • Maximum PV input voltage: 100 V
  • Maximum charging current: 15 A
  • Supports 12V or 24V batteries
  • VE.Direct port for data monitoring and performance visualization

Advantages or benefits

  • Optimizes solar charging efficiency, even at low irradiation levels
  • Over temperature, short circuit and overload protection
  • Ultra-fast MPPT tracking increases energy harvesting by up to 30%
  • Ability to monitor system performance in real time thanks to VE.Direct communication

Purpose or applications

  • Ideal for medium or large size photovoltaic systems
  • Optimize battery charging in higher capacity commercial or residential solar installations

Technical specifications

  • Maximum charging current: 15 A
  • Maximum PV input voltage: 100 V
  • Absorption charging voltage range: 14.4V/28.8V
  • Short circuit, over temperature and overload protection
  • Operating temperature: -30°C to +60°C
  • Weight: 0.65 kg
  • Dimensions: 100 x 113 x 60 mm

In short, the Victron BlueSolar 100/15 MPPT Charge Controller is the perfect choice for those who need an efficient and reliable controller for their medium to large-sized solar PV systems. With its high efficiency and advanced features, it ensures optimal performance and increased durability for solar batteries.

Victron BlueSolar 100/15 MPPT Charge Regulator

Product form

HeVictron BlueSolar 100/15 MPPT Charge Regulatormaximizes thesolar energywith an efficiency of up to98%. With a maximum charging current of15 Aand a voltage of up to100 V, is ideal for medium to large photovoltaic systems.

SKU: REGMPPVIC006

84,07 € 71,46 € Incl. VAT

    Specs

    Description

    Victron BlueSolar 100/15 MPPT Charge Regulator

    The Victron BlueSolar 100/15 MPPT Charge Controller is an excellent choice for those looking to improve the performance of their medium to large solar PV systems. With a maximum charging current of 15 A and an input voltage of up to 100 V , this controller optimizes solar energy harvesting using advanced MPPT technology. Its charging efficiency of up to 98% ensures excellent performance, even in low irradiance conditions.

    Main Features

    • Maximum MPPT efficiency up to 98%
    • Maximum PV input voltage: 100 V
    • Maximum charging current: 15 A
    • Supports 12V or 24V batteries
    • VE.Direct port for data monitoring and performance visualization

    Advantages or benefits

    • Optimizes solar charging efficiency, even at low irradiation levels
    • Over temperature, short circuit and overload protection
    • Ultra-fast MPPT tracking increases energy harvesting by up to 30%
    • Ability to monitor system performance in real time thanks to VE.Direct communication

    Purpose or applications

    • Ideal for medium or large size photovoltaic systems
    • Optimize battery charging in higher capacity commercial or residential solar installations

    Technical specifications

    • Maximum charging current: 15 A
    • Maximum PV input voltage: 100 V
    • Absorption charging voltage range: 14.4V/28.8V
    • Short circuit, over temperature and overload protection
    • Operating temperature: -30°C to +60°C
    • Weight: 0.65 kg
    • Dimensions: 100 x 113 x 60 mm

    In short, the Victron BlueSolar 100/15 MPPT Charge Controller is the perfect choice for those who need an efficient and reliable controller for their medium to large-sized solar PV systems. With its high efficiency and advanced features, it ensures optimal performance and increased durability for solar batteries.
