Victron BMV-712 Battery Monitor

Description

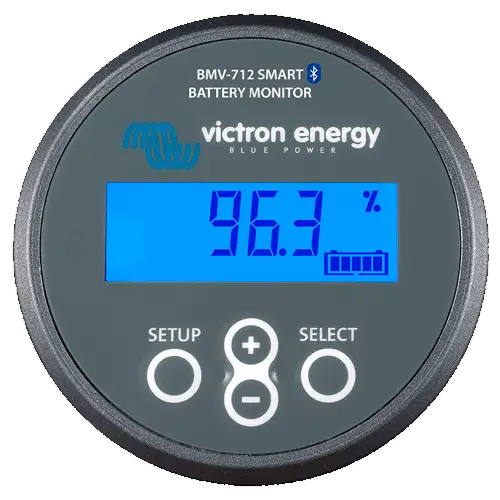

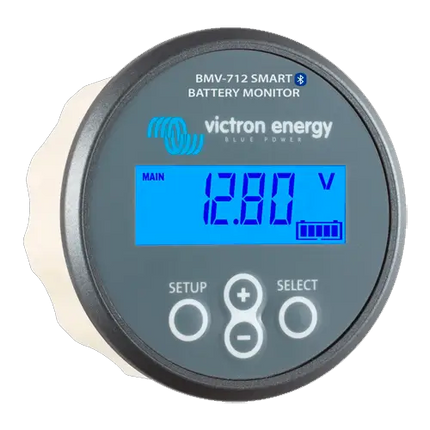

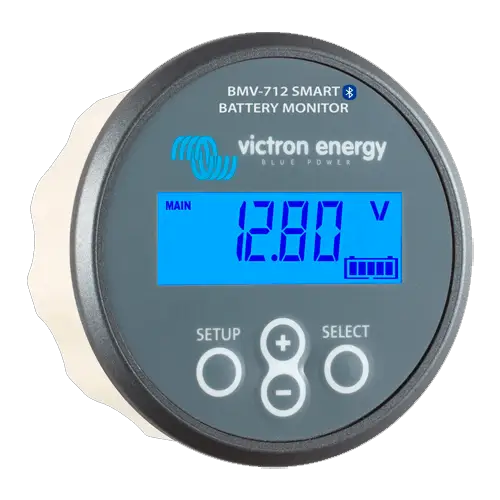

Victron BMV-712 Battery Monitor

The Victron BMV-712 Battery Monitor is an advanced tool for monitoring batteries in solar power systems, recreational vehicles and industrial applications. With built-in Bluetooth , it allows easy remote control via the VictronConnect app on your smartphone, making it easy to manage and configure your batteries anytime, anywhere.

Main features:

  • Integrated Bluetooth for remote control from mobile devices.
  • Monitors voltage , current , amp-hours consumed and battery charge status.
  • Programmable visual and audible alarm to warn of system problems.
  • Programmable relay to disconnect non-critical loads or activate generators when necessary.

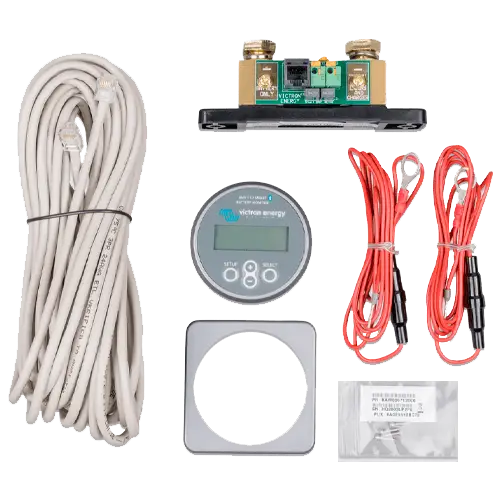

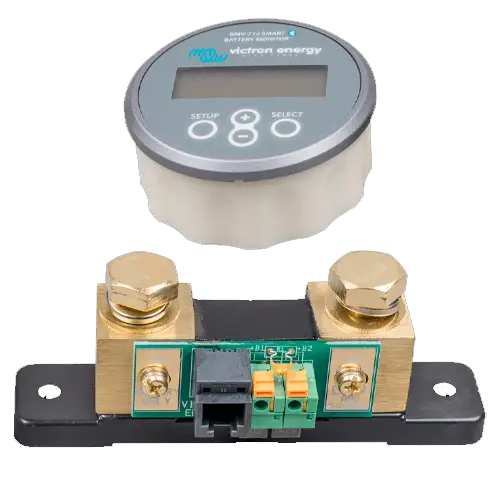

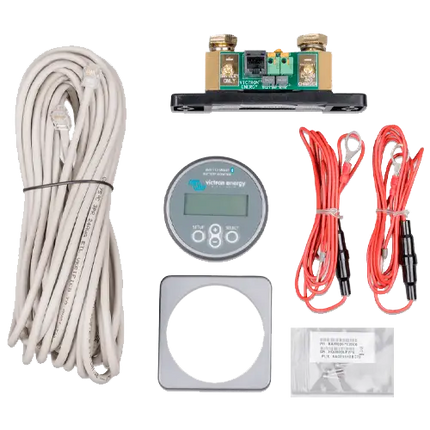

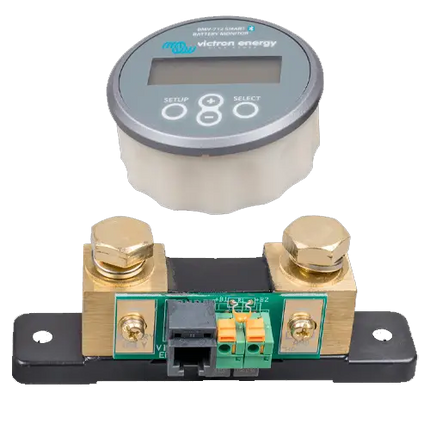

  • 500A shunt with quick connect PCB for easy installation.

Advantages or benefits:

  • Accurate current and voltage measurement with resolution of 10 mA (0.01 A) and ±0.01 V respectively.
  • Complete data history to analyze battery performance and health.
  • Low power consumption (less than 1 mA per month), ideal for long-term applications without affecting battery capacity.

Purpose or applications:

  • Ideal for solar and energy storage systems where battery control is critical.
  • Perfect for RVs, boats and other stand-alone power systems.
  • Suitable for industrial and commercial applications where constant battery monitoring is required.

Technical specifications:

  • Voltage range: 6.5 – 70 VDC.
  • Power consumption: < 1 mA.
  • Working temperature range: -40°C to +50°C.
  • Measuring accuracy of current ±0.01 A, voltage ±0.01 V, ampere-hour ±0.1 Ah.
  • Additional input for measuring the voltage of a second battery, temperature or midpoint voltage .

In short, the Victron BMV-712 Battery Monitor is the ideal choice for those who need accurate and easy monitoring of their battery systems. Thanks to its built-in Bluetooth and advanced capabilities, it is perfect for maximising efficiency and extending battery life in solar and storage systems.

Victron BMV-712 Battery Monitor

Product form

HeVictron BMV-712 Battery MonitorincludesIntegrated Bluetoothfor remote control from your smartphone. Monitorstrain,currentandremaining autonomy, ideal for renewable energy applications.

SKU: ACCBAT000021

228,00 € 171,00 € Incl. VAT

    Specs
    PDF Icon Descargar ficha técnica

    Description

    Victron BMV-712 Battery Monitor

    The Victron BMV-712 Battery Monitor is an advanced tool for monitoring batteries in solar power systems, recreational vehicles and industrial applications. With built-in Bluetooth , it allows easy remote control via the VictronConnect app on your smartphone, making it easy to manage and configure your batteries anytime, anywhere.

    Main features:

    • Integrated Bluetooth for remote control from mobile devices.
    • Monitors voltage , current , amp-hours consumed and battery charge status.
    • Programmable visual and audible alarm to warn of system problems.
    • Programmable relay to disconnect non-critical loads or activate generators when necessary.
    • 500A shunt with quick connect PCB for easy installation.

    Advantages or benefits:

    • Accurate current and voltage measurement with resolution of 10 mA (0.01 A) and ±0.01 V respectively.
    • Complete data history to analyze battery performance and health.
    • Low power consumption (less than 1 mA per month), ideal for long-term applications without affecting battery capacity.

    Purpose or applications:

    • Ideal for solar and energy storage systems where battery control is critical.
    • Perfect for RVs, boats and other stand-alone power systems.
    • Suitable for industrial and commercial applications where constant battery monitoring is required.

    Technical specifications:

    • Voltage range: 6.5 – 70 VDC.
    • Power consumption: < 1 mA.
    • Working temperature range: -40°C to +50°C.
    • Measuring accuracy of current ±0.01 A, voltage ±0.01 V, ampere-hour ±0.1 Ah.
    • Additional input for measuring the voltage of a second battery, temperature or midpoint voltage .

    In short, the Victron BMV-712 Battery Monitor is the ideal choice for those who need accurate and easy monitoring of their battery systems. Thanks to its built-in Bluetooth and advanced capabilities, it is perfect for maximising efficiency and extending battery life in solar and storage systems.
