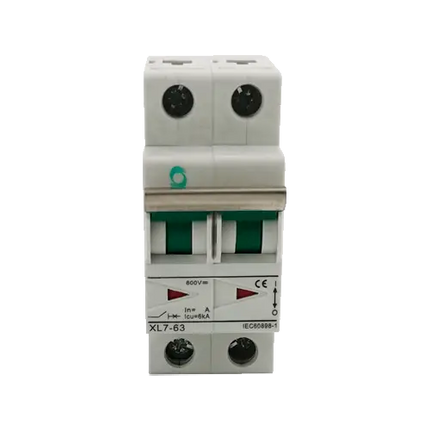

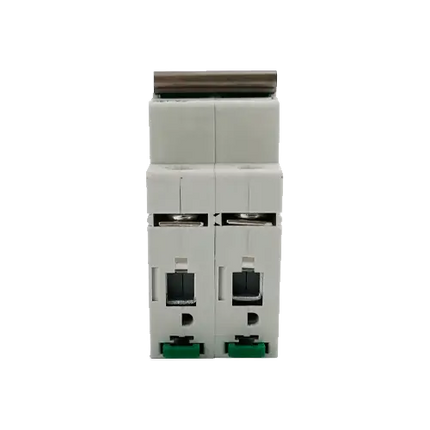

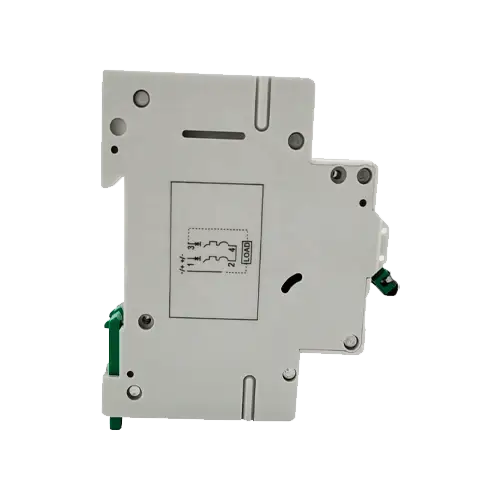

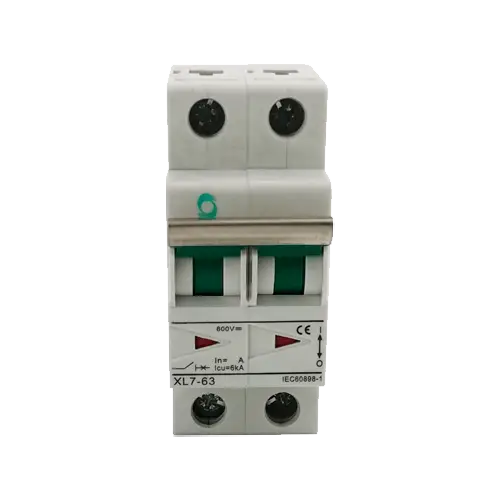

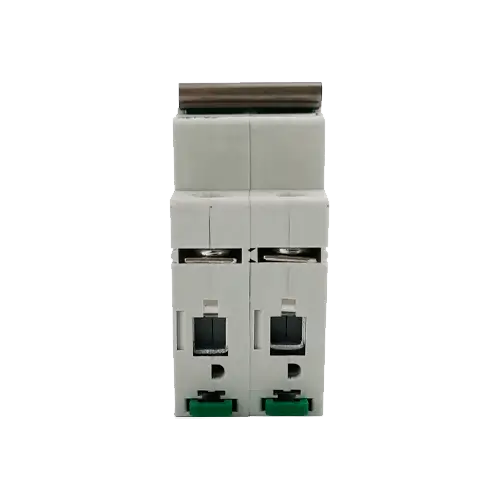

Magnetothermal 800 VDC 32 A 2P

Description

Magnetothermal 800 VDC 32 A 2P

The 800 VDC 32 A 2P thermal-magnetic switch is a robust protection switch designed for high-capacity photovoltaic systems. With a nominal current of 32 A and a voltage of up to 800 VDC , it provides effective protection against overloads and short circuits, ensuring the safety and stability of commercial and industrial solar installations.

Main Features

  • Nominal voltage of 800 VDC , suitable for industrial solar photovoltaic systems
  • Nominal current of 32 A , ideal for higher capacity installations
  • Easy DIN rail installation to ensure fast and efficient integration
  • Overload and short-circuit protection in large-scale photovoltaic systems

Advantages or benefits

  • Provides continuous and reliable protection for high capacity solar systems
  • Meets safety regulations for commercial photovoltaic applications
  • Easy installation and maintenance thanks to its DIN rail compatible design

Purpose or applications

  • Protection of higher capacity commercial and industrial photovoltaic systems
  • Ideal for applications with voltage up to 800 VDC in high performance solar environments

Technical specifications

  • Nominal voltage: 800 VDC
  • Rated current: 32 A
  • Breaking capacity: 6 kA
  • Ambient temperature: -35°C to +70°C
  • Wiring capacity: 1-6 mm²
  • Weight: 0.24 kg
  • Installation: DIN rail

In summary, the 800 VDC 32 A 2P Thermal-magnetic Circuit Breaker is an excellent choice for protecting commercial and industrial photovoltaic systems, providing a nominal current of 32 A and advanced protection for high-capacity solar installations.

Magnetothermal 800 VDC 32 A 2P

Product form

HeMagnetothermal 800 VDC 32 A 2PIt is ideal for protectingphotovoltaic solar systemsof higher capacity, with a nominal current of32 Aand voltage of800 VDC. Perfect for commercial and industrial applications.

SKU: ACCESPRO0060

10,00 € 7,00 € Incl. VAT

    Specs

    Description

    Magnetothermal 800 VDC 32 A 2P

    The 800 VDC 32 A 2P thermal-magnetic switch is a robust protection switch designed for high-capacity photovoltaic systems. With a nominal current of 32 A and a voltage of up to 800 VDC , it provides effective protection against overloads and short circuits, ensuring the safety and stability of commercial and industrial solar installations.

    Main Features

    • Nominal voltage of 800 VDC , suitable for industrial solar photovoltaic systems
    • Nominal current of 32 A , ideal for higher capacity installations
    • Easy DIN rail installation to ensure fast and efficient integration
    • Overload and short-circuit protection in large-scale photovoltaic systems

    Advantages or benefits

    • Provides continuous and reliable protection for high capacity solar systems
    • Meets safety regulations for commercial photovoltaic applications
    • Easy installation and maintenance thanks to its DIN rail compatible design

    Purpose or applications

    • Protection of higher capacity commercial and industrial photovoltaic systems
    • Ideal for applications with voltage up to 800 VDC in high performance solar environments

    Technical specifications

    • Nominal voltage: 800 VDC
    • Rated current: 32 A
    • Breaking capacity: 6 kA
    • Ambient temperature: -35°C to +70°C
    • Wiring capacity: 1-6 mm²
    • Weight: 0.24 kg
    • Installation: DIN rail

    In summary, the 800 VDC 32 A 2P Thermal-magnetic Circuit Breaker is an excellent choice for protecting commercial and industrial photovoltaic systems, providing a nominal current of 32 A and advanced protection for high-capacity solar installations.
