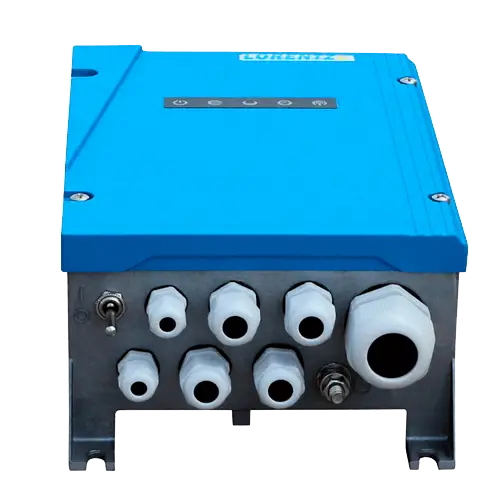

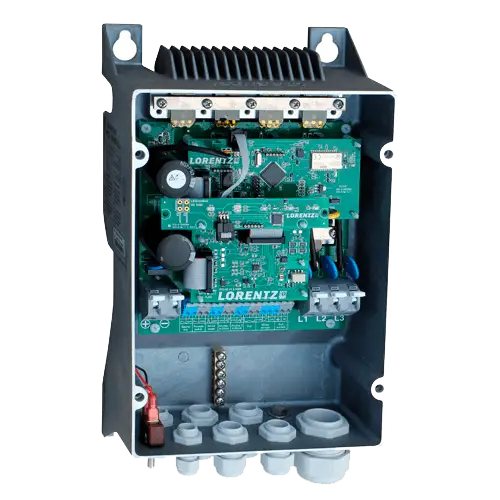

Lorentz PS2-1800 Controller

Description

Lorentz PS2-1800 Controller - Advanced Control for Solar Pumps

The Lorentz PS2-1800 Controller is an advanced solution for the control and monitoring of solar pumps , with optimized performance thanks to the integration of MPPT (Maximum Power Point Tracking) technology and a solar sensor that adjusts operation according to solar conditions. This controller guarantees efficient and safe operation, with advanced protection against overload, dry operation and temperature fluctuations.

Main Features

  • Remote control and dry-run protection, increasing system reliability.
  • Reverse polarity, overload and over-temperature protection for safe operation.
  • Integration of MPPT technology to optimize the use of solar energy.
  • Integrated solar sensor to adjust operation according to available irradiation, improving system performance.

Advantages or benefits

  • Up to 98% maximum efficiency , ensuring low consumption and high system performance.
  • Advanced protection increases the reliability and durability of solar pumps and other components.
  • Greater reliability and safety in the management of solar pumps thanks to their multiple protection functions.

Purpose or applications

  • Optimizing the performance of solar pumps for irrigation, water supply and other stand-alone solar systems.
  • Ideal for solar installations in areas with variable solar conditions, always guaranteeing maximum performance.
  • Use in solar systems that require protection against overload, excessive temperature and voltage failures.

Technical specifications

  • Maximum power: 1.8 kW.
  • Maximum input voltage: 200 V.
  • Optimum voltage (Vmp) > 102 V.
  • Maximum motor current: 14 A.
  • Maximum efficiency: 98%.
  • Ambient temperature range: -40...50 °C.
  • Protection grade: IP68 (water and dust resistant).
  • Complies with standards 2006/42/EC, 2004/108/EC, 2006/95/EC, IEC/EN 61702:1995, IEC/EN 62253 Ed.1.

Dimensions and weight

  • Product Dimensions: 352mm x 333mm x 207mm.
  • Net weight: 6 kg.

In summary, the Lorentz PS2-1800 Controller is a robust and efficient solution for solar pumps , providing advanced control and energy efficiency optimization, with an integrated solar sensor to ensure the best possible performance in any solar condition.

Lorentz PS2-1800 Controller

Product form

HeLorentz PS2-1800 Controlleroffers aadvanced controlforsolar pumps, maximizing efficiency withMPPT technologyandintegrated solar sensorfor optimal and safe operation.

Modelo: PS2-1800

SKU: ACCBOMLOR004

1.090,00 € 872,00 € Incl. VAT

    Specs

    Productos Compatibles

    Show more products

    Description

    Lorentz PS2-1800 Controller - Advanced Control for Solar Pumps

    The Lorentz PS2-1800 Controller is an advanced solution for the control and monitoring of solar pumps , with optimized performance thanks to the integration of MPPT (Maximum Power Point Tracking) technology and a solar sensor that adjusts operation according to solar conditions. This controller guarantees efficient and safe operation, with advanced protection against overload, dry operation and temperature fluctuations.

    Main Features

    • Remote control and dry-run protection, increasing system reliability.
    • Reverse polarity, overload and over-temperature protection for safe operation.
    • Integration of MPPT technology to optimize the use of solar energy.
    • Integrated solar sensor to adjust operation according to available irradiation, improving system performance.

    Advantages or benefits

    • Up to 98% maximum efficiency , ensuring low consumption and high system performance.
    • Advanced protection increases the reliability and durability of solar pumps and other components.
    • Greater reliability and safety in the management of solar pumps thanks to their multiple protection functions.

    Purpose or applications

    • Optimizing the performance of solar pumps for irrigation, water supply and other stand-alone solar systems.
    • Ideal for solar installations in areas with variable solar conditions, always guaranteeing maximum performance.
    • Use in solar systems that require protection against overload, excessive temperature and voltage failures.

    Technical specifications

    • Maximum power: 1.8 kW.
    • Maximum input voltage: 200 V.
    • Optimum voltage (Vmp) > 102 V.
    • Maximum motor current: 14 A.
    • Maximum efficiency: 98%.
    • Ambient temperature range: -40...50 °C.
    • Protection grade: IP68 (water and dust resistant).
    • Complies with standards 2006/42/EC, 2004/108/EC, 2006/95/EC, IEC/EN 61702:1995, IEC/EN 62253 Ed.1.

    Dimensions and weight

    • Product Dimensions: 352mm x 333mm x 207mm.
    • Net weight: 6 kg.

    In summary, the Lorentz PS2-1800 Controller is a robust and efficient solution for solar pumps , providing advanced control and energy efficiency optimization, with an integrated solar sensor to ensure the best possible performance in any solar condition.
