Acrosun Belenus 2H 90M-10 solar submersible pump

Description

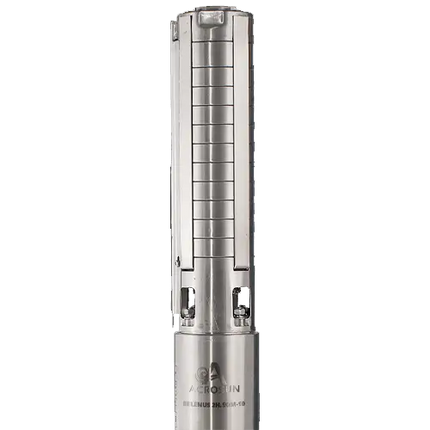

Acrosun Belenus 2H 90M-10 Solar Submersible Pump

The Acrosun Belenus 2H 90M-10 solar submersible pump is a high-performance pump designed for **solar water extraction** from wells and agricultural applications. With a maximum power of 2.4 kW , a flow rate of 9.96 m³/h and a Maximum lifting height of 90 meters , it is ideal for solar irrigation systems and water pumping in rural areas or areas without access to electricity. Its motor and pump body are made of AISI 304 stainless steel, guaranteeing durability and resistance in extreme conditions. .

Main Features

  • Power: 2.4 kW
  • DC voltage range: 60-380VDC
  • AC voltage range: 90-240VAC
  • Maximum current: 10 A
  • Maximum flow rate: 9.96 m³/h
  • Maximum height: 90 meters
  • Motor: 2HP, centrifugal motor
  • Output: 4”
  • Speed: 3,600 rpm
  • Weight: 16.5 kg
  • Pump height: 1 meter
  • Protection grade: IP68
  • Liquid to be pumped: Water
  • Maximum liquid temperature: 36ºC (96.8ºF)
  • Diving depth: 150 meters
  • Certifications: TUV, CE, UL

Advantages or Benefits

  • High energy efficiency, ideal for large-scale solar projects.
  • Made of AISI 304 stainless steel to ensure durability and corrosion resistance.
  • Perfect for solar water pumping systems in wells and agricultural applications.
  • Integrated StopFlow protection for increased system safety and reliability.

Purpose or Applications

  • Extraction of water from deep wells for agricultural applications.
  • Solar irrigation in crops, gardens and orchards.
  • Water pumping in autonomous photovoltaic systems.
  • Water supply in rural areas without access to electricity.

Technical Specifications

  • Power: 2.4 kW
  • DC voltage range: 60-380VDC
  • AC voltage range: 90-240VAC
  • Maximum current: 10 A
  • Maximum flow rate: 9.96 m³/h
  • Maximum height: 90 meters
  • Motor: 2HP, centrifugal motor
  • Output: 4”
  • Speed: 3,600 rpm
  • Weight: 16.5 kg
  • Height: 1 meter
  • Protection grade: IP68
  • Liquid to be pumped: Water
  • Maximum liquid temperature: 36ºC (96.8ºF)
  • Diving depth: 150 meters
  • Certifications: TUV, CE, UL

The Acrosun Belenus 2H 90M-10 solar submersible pump is an excellent choice for those who need a powerful and efficient pump for **solar irrigation** and **solar water extraction** in deep wells. With its 2.4 kW power and its ability to lift water up to 90 meters, it is ideal for autonomous solar-powered systems.

Acrosun Belenus 2H 90M-10 solar submersible pump

Product form

TheAcrosun Belenus 2H 90M-10 solar submersible pumpof2.4 kWIt is ideal for solar irrigation and water extraction from wells. With a flow rate of9.96 m³/hand a maximum height of90 meters, offers energy efficiency for agricultural applications.

Modelo: Belenus 2H 90M-10

SKU: BOMSUMACR001

1.201,11 € 1.020,94 € Incl. VAT

    Specs

    Description

    Acrosun Belenus 2H 90M-10 Solar Submersible Pump

    The Acrosun Belenus 2H 90M-10 solar submersible pump is a high-performance pump designed for **solar water extraction** from wells and agricultural applications. With a maximum power of 2.4 kW , a flow rate of 9.96 m³/h and a Maximum lifting height of 90 meters , it is ideal for solar irrigation systems and water pumping in rural areas or areas without access to electricity. Its motor and pump body are made of AISI 304 stainless steel, guaranteeing durability and resistance in extreme conditions. .

    Main Features

    • Power: 2.4 kW
    • DC voltage range: 60-380VDC
    • AC voltage range: 90-240VAC
    • Maximum current: 10 A
    • Maximum flow rate: 9.96 m³/h
    • Maximum height: 90 meters
    • Motor: 2HP, centrifugal motor
    • Output: 4”
    • Speed: 3,600 rpm
    • Weight: 16.5 kg
    • Pump height: 1 meter
    • Protection grade: IP68
    • Liquid to be pumped: Water
    • Maximum liquid temperature: 36ºC (96.8ºF)
    • Diving depth: 150 meters
    • Certifications: TUV, CE, UL

    Advantages or Benefits

    • High energy efficiency, ideal for large-scale solar projects.
    • Made of AISI 304 stainless steel to ensure durability and corrosion resistance.
    • Perfect for solar water pumping systems in wells and agricultural applications.
    • Integrated StopFlow protection for increased system safety and reliability.

    Purpose or Applications

    • Extraction of water from deep wells for agricultural applications.
    • Solar irrigation in crops, gardens and orchards.
    • Water pumping in autonomous photovoltaic systems.
    • Water supply in rural areas without access to electricity.

    Technical Specifications

    • Power: 2.4 kW
    • DC voltage range: 60-380VDC
    • AC voltage range: 90-240VAC
    • Maximum current: 10 A
    • Maximum flow rate: 9.96 m³/h
    • Maximum height: 90 meters
    • Motor: 2HP, centrifugal motor
    • Output: 4”
    • Speed: 3,600 rpm
    • Weight: 16.5 kg
    • Height: 1 meter
    • Protection grade: IP68
    • Liquid to be pumped: Water
    • Maximum liquid temperature: 36ºC (96.8ºF)
    • Diving depth: 150 meters
    • Certifications: TUV, CE, UL

    The Acrosun Belenus 2H 90M-10 solar submersible pump is an excellent choice for those who need a powerful and efficient pump for **solar irrigation** and **solar water extraction** in deep wells. With its 2.4 kW power and its ability to lift water up to 90 meters, it is ideal for autonomous solar-powered systems.
