Acrosun Belenus 2.5H 70M-16 solar submersible pump

Description

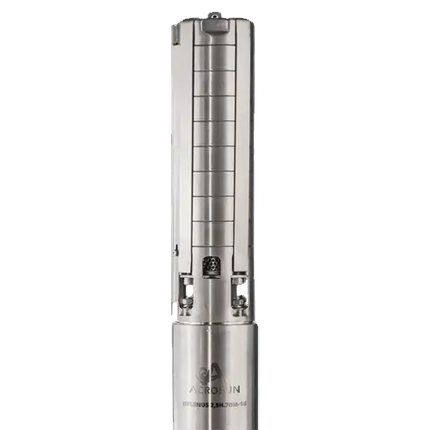

Acrosun Belenus 2.5H 70M-16 Solar Submersible Pump

The Acrosun Belenus 2.5H 70M-16 solar submersible pump is a high-performance pump, designed for **solar irrigation** and **solar water extraction** applications in wells. With a maximum power of 2.8 kW , this pump provides a flow rate of 16.2 m³/h and a lifting height of up to 70 meters , ideal for agricultural projects that require a high pumping capacity. Its AISI 304 stainless steel construction provides high durability, while its StopFlow protection system increases system safety.

Main Features

  • Power: 2.8 kW
  • DC voltage range: 60-380VDC
  • AC voltage range: 90-240VAC
  • Maximum current: 10 A
  • Maximum flow rate: 16.2 m³/h
  • Maximum height: 70 meters
  • Motor: 2.5HP, centrifugal motor
  • Output: 4”
  • Speed: 3,600 rpm
  • Weight: 16 kg
  • Pump height: 0.96 m
  • Protection grade: IP68
  • Liquid to be pumped: Water
  • Maximum liquid temperature: 36ºC (96.8ºF)
  • Diving depth: 150 meters
  • Certifications: TUV, CE, UL

Advantages or Benefits

  • High energy efficiency for autonomous solar systems.
  • Made of AISI 304 stainless steel for greater durability.
  • StopFlow protection system for safe operation.
  • Ideal for agricultural irrigation and water extraction in areas without access to electricity.

Purpose or Applications

  • Solar irrigation for orchards, crops and gardens in rural areas.
  • Extraction of water from wells for agricultural applications.
  • Water supply for autonomous photovoltaic systems.

Technical Specifications

  • Power: 2.8 kW
  • DC voltage range: 60-380VDC
  • AC voltage range: 90-240VAC
  • Maximum current: 10 A
  • Maximum flow rate: 16.2 m³/h
  • Maximum height: 70 meters
  • Motor: 2.5HP, centrifugal motor
  • Output: 4”
  • Speed: 3,600 rpm
  • Weight: 16 kg
  • Pump height: 0.96 m
  • Protection grade: IP68
  • Liquid to be pumped: Water
  • Maximum liquid temperature: 36ºC (96.8ºF)
  • Diving depth: 150 meters
  • Certifications: TUV, CE, UL

The Acrosun Belenus 2.5H 70M-16 solar pump is the ideal choice for those who need a powerful and reliable pump for **solar water extraction** and **solar irrigation**. With its powerful 2.8 kW motor, a flow rate of 16.2 m³/h and a head of 70 metres, it offers excellent performance in agricultural and stand-alone photovoltaic applications.

Acrosun Belenus 2.5H 70M-16 solar submersible pump

Product form

TheAcrosun Belenus 2.5H 70M-16 solar submersible pumpof2.8 kWIt is ideal forsolar water extractionand agricultural irrigation. With a flow rate of16.2 m³/hand a maximum height of70 meters, offers high energy efficiency.

Modelo: Belenus 2.5H 70M-16

SKU: BOMSUMACR002

1.201,11 € 1.020,94 € Incl. VAT

    Specs

    Description

    Acrosun Belenus 2.5H 70M-16 Solar Submersible Pump

    The Acrosun Belenus 2.5H 70M-16 solar submersible pump is a high-performance pump, designed for **solar irrigation** and **solar water extraction** applications in wells. With a maximum power of 2.8 kW , this pump provides a flow rate of 16.2 m³/h and a lifting height of up to 70 meters , ideal for agricultural projects that require a high pumping capacity. Its AISI 304 stainless steel construction provides high durability, while its StopFlow protection system increases system safety.

    Main Features

    • Power: 2.8 kW
    • DC voltage range: 60-380VDC
    • AC voltage range: 90-240VAC
    • Maximum current: 10 A
    • Maximum flow rate: 16.2 m³/h
    • Maximum height: 70 meters
    • Motor: 2.5HP, centrifugal motor
    • Output: 4”
    • Speed: 3,600 rpm
    • Weight: 16 kg
    • Pump height: 0.96 m
    • Protection grade: IP68
    • Liquid to be pumped: Water
    • Maximum liquid temperature: 36ºC (96.8ºF)
    • Diving depth: 150 meters
    • Certifications: TUV, CE, UL

    Advantages or Benefits

    • High energy efficiency for autonomous solar systems.
    • Made of AISI 304 stainless steel for greater durability.
    • StopFlow protection system for safe operation.
    • Ideal for agricultural irrigation and water extraction in areas without access to electricity.

    Purpose or Applications

    • Solar irrigation for orchards, crops and gardens in rural areas.
    • Extraction of water from wells for agricultural applications.
    • Water supply for autonomous photovoltaic systems.

    Technical Specifications

    • Power: 2.8 kW
    • DC voltage range: 60-380VDC
    • AC voltage range: 90-240VAC
    • Maximum current: 10 A
    • Maximum flow rate: 16.2 m³/h
    • Maximum height: 70 meters
    • Motor: 2.5HP, centrifugal motor
    • Output: 4”
    • Speed: 3,600 rpm
    • Weight: 16 kg
    • Pump height: 0.96 m
    • Protection grade: IP68
    • Liquid to be pumped: Water
    • Maximum liquid temperature: 36ºC (96.8ºF)
    • Diving depth: 150 meters
    • Certifications: TUV, CE, UL

    The Acrosun Belenus 2.5H 70M-16 solar pump is the ideal choice for those who need a powerful and reliable pump for **solar water extraction** and **solar irrigation**. With its powerful 2.8 kW motor, a flow rate of 16.2 m³/h and a head of 70 metres, it offers excellent performance in agricultural and stand-alone photovoltaic applications.
