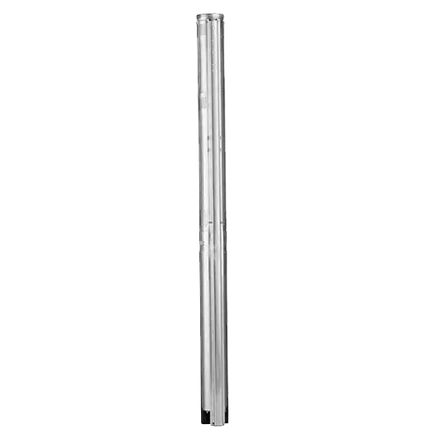

Grundfos SQFlex 1.2-3 Solar Pump

Description

Grundfos SQFlex 1.2-3 Solar Pump

The Grundfos SQFlex 1.2-3 solar pump is a high-performance pump, designed to supply water in solar irrigation, water extraction and photovoltaic systems applications. With a power of 1.4 kW , this pump is ideal for low flow rates and high heads. high. Its flexible renewable energy system allows its use in projects powered by **solar** and **wind** energy, adapting to any need of the installation site. The SQFlex pump is equipped with a high-efficiency motor, protections advanced and an MPPT tracking system for maximum performance.

Main Features

  • Input power: 1.4 kW
  • AC voltage range: 1 x 90-240 V
  • DC voltage range: 30-300V
  • Maximum flow rate: 9.96 m³/h
  • Maximum height: 140 meters
  • Motor: MSF3, centrifugal motor
  • Rated speed: 3600 rpm
  • Protection grade: IP68
  • Maximum liquid temperature: 40°C
  • Pump material: AISI 304 stainless steel

Advantages or Benefits

  • Ideal for **solar irrigation** and **water extraction** applications in places without access to the electrical grid.
  • Flexibility in energy supply, with the option of being powered by solar panels or wind energy.
  • High energy efficiency with the MPPT maximum power point tracking system.
  • Protection against dry running, overload and abnormal voltages.

Purpose or Applications

  • Extraction of water from deep wells for **agricultural irrigation** and **photovoltaic systems**.
  • **Water supply** projects in rural areas without access to electricity.
  • Solar irrigation for orchards, gardens and crops.

Technical Specifications

  • Input power: 1.4 kW
  • AC voltage range: 1 x 90-240 V
  • DC voltage range: 30-300V
  • Maximum flow rate: 9.96 m³/h
  • Maximum height: 140 meters
  • Motor: MSF3, centrifugal motor
  • Rated speed: 3600 rpm
  • Protection grade: IP68
  • Maximum liquid temperature: 40°C
  • Pump material: AISI 304 stainless steel
  • Cable length: 2 m

The Grundfos SQFlex 1.2-3 solar pump is an excellent choice for those looking for a high-efficiency pump for **water pumping** systems in **solar energy** and **wind energy** projects. Its ability to work with high heads and low flow rates makes it ideal for agricultural and water supply applications in remote areas.

Grundfos SQFlex 1.2-3 Solar Pump

Product form

TheGrundfos SQFlex 1.2-3 solar pumpof1.4 kWIt is ideal forlow flow ratesandhigh heights. With a maximum flow rate of9.96 m³/hand a height of140 meters, is perfect for applications ofsolar energyandwind.

SKU: BOMSUMGRU004

2.083,00 € 1.667,00 € Incl. VAT

    Specs
    PDF Icon Descargar ficha técnica
