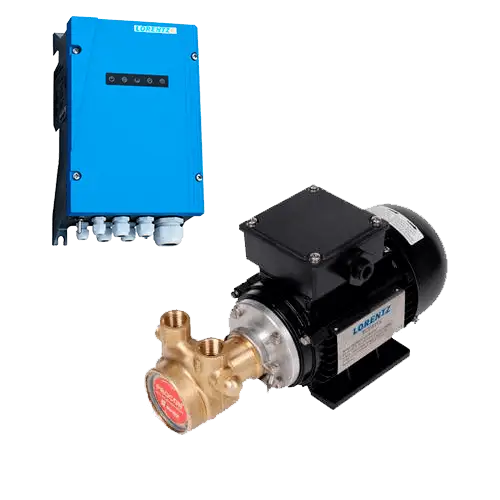

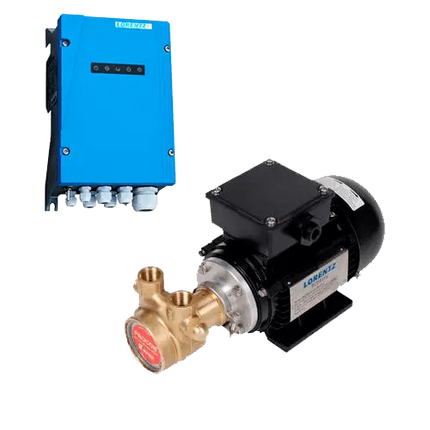

Surface Pump with Lorentz Controller PS2-150 BOOST-330

Description

Surface Pump with Lorentz Controller PS2-150 BOOST-330 - Large Hydraulic Capacity for Solar Pumping

The Lorentz PS2-150 BOOST-330 pump is a high-capacity pump designed for solar pumping systems requiring high performance. With a maximum flow rate of up to 1.3 m³/h and a maximum head of 330 m, it is perfect for applications requiring high hydraulic capacity, such as agricultural irrigation and water supply. The ECDRIVE 150-BOOST motor offers a maximum efficiency of 92%, ensuring reliability and performance throughout the operating cycle.

Main Features

  • Brushless, maintenance-free motor for greater reliability and lower operating costs.
  • Premium materials: AISI 304 stainless steel and bronze for the pump head, providing durability and resistance.
  • Nominal power of 0.30 kW with maximum efficiency of 92%.
  • Engine speed from 280 to 1,750 rpm, with insulation class F.
  • IPX4 protection, suitable for demanding outdoor conditions.

Advantages or benefits

  • Ideal for applications requiring high hydraulic capacity and consistent performance.
  • Reduced maintenance and improved reliability thanks to the brushless motor.
  • High quality materials guarantee long lasting performance.

Purpose or applications

  • Ideal for agricultural irrigation applications, water supply and solar projects requiring high flow and higher pumping height.
  • Perfect for high-capacity solar pumping projects that require long-term reliability and efficiency.

Technical specifications

  • Maximum height: 330 m.
  • Maximum flow: 1.3 m³/h.
  • ECDRIVE 150-BOOST motor with nominal power of 0.30 kW.
  • Engine speed: 280...1,750 rpm.
  • Maximum water temperature: 80°C.
  • Maximum suction height: 3 m.
  • Pump head material: bronze.
  • Protection rating: IPX4.

Dimensions and weight

  • Total weight of pump system: 7.5 kg.
  • Engine weight: 5.5 kg.
  • Pump head weight: 2.0kg.

In summary, the Lorentz PS2-150 BOOST-330 Pump is ideal for solar pumping systems requiring high hydraulic capacity, offering exceptional performance and long-lasting reliability in demanding projects.

Surface Pump with Lorentz Controller PS2-150 BOOST-330

Product form

TheLorentz pump PS2-150 BOOST-330It is perfect for systems ofpumpingwithlarge hydraulic capacity, reaching up to 1.3 m³/h of flow and 330 m of maximum height, ideal for demanding projects.

Modelo: PS2-150 BOOST-330

SKU: BOMSUPLOR008

1.454,89 € 1.236,66 € Incl. VAT

    Specs

    Description

    Surface Pump with Lorentz Controller PS2-150 BOOST-330 - Large Hydraulic Capacity for Solar Pumping

    The Lorentz PS2-150 BOOST-330 pump is a high-capacity pump designed for solar pumping systems requiring high performance. With a maximum flow rate of up to 1.3 m³/h and a maximum head of 330 m, it is perfect for applications requiring high hydraulic capacity, such as agricultural irrigation and water supply. The ECDRIVE 150-BOOST motor offers a maximum efficiency of 92%, ensuring reliability and performance throughout the operating cycle.

    Main Features

    • Brushless, maintenance-free motor for greater reliability and lower operating costs.
    • Premium materials: AISI 304 stainless steel and bronze for the pump head, providing durability and resistance.
    • Nominal power of 0.30 kW with maximum efficiency of 92%.
    • Engine speed from 280 to 1,750 rpm, with insulation class F.
    • IPX4 protection, suitable for demanding outdoor conditions.

    Advantages or benefits

    • Ideal for applications requiring high hydraulic capacity and consistent performance.
    • Reduced maintenance and improved reliability thanks to the brushless motor.
    • High quality materials guarantee long lasting performance.

    Purpose or applications

    • Ideal for agricultural irrigation applications, water supply and solar projects requiring high flow and higher pumping height.
    • Perfect for high-capacity solar pumping projects that require long-term reliability and efficiency.

    Technical specifications

    • Maximum height: 330 m.
    • Maximum flow: 1.3 m³/h.
    • ECDRIVE 150-BOOST motor with nominal power of 0.30 kW.
    • Engine speed: 280...1,750 rpm.
    • Maximum water temperature: 80°C.
    • Maximum suction height: 3 m.
    • Pump head material: bronze.
    • Protection rating: IPX4.

    Dimensions and weight

    • Total weight of pump system: 7.5 kg.
    • Engine weight: 5.5 kg.
    • Pump head weight: 2.0kg.

    In summary, the Lorentz PS2-150 BOOST-330 Pump is ideal for solar pumping systems requiring high hydraulic capacity, offering exceptional performance and long-lasting reliability in demanding projects.
